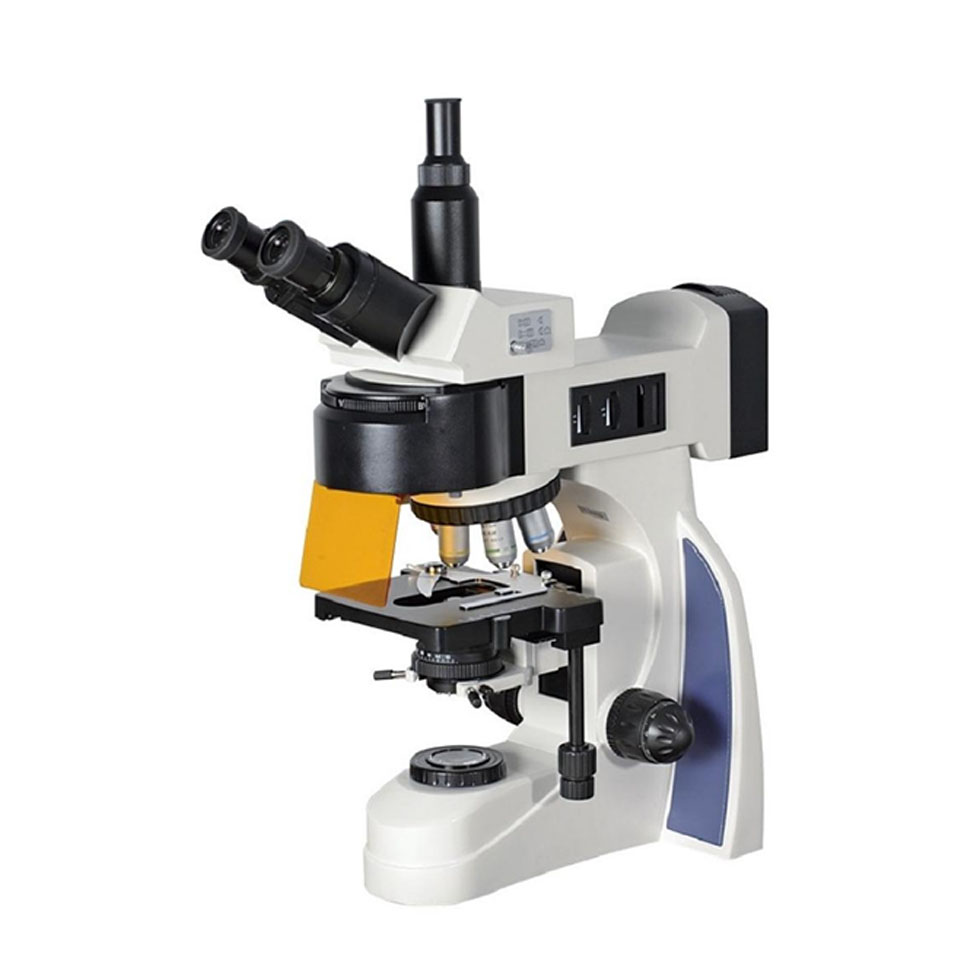

XYL-700Y Five Wave Bands LED Fluorecent Microscope

Five Wave Bands LED Fluorecent Microscope

XYL-700Y 五波段LED 荧光显微镜广泛应用于生物学、医学、免疫学、肿瘤学、遗传学、材料科学等领域。仪器标准配置G 、B 、BV 、V 、UV五个波段。也可以进行常规的透射观察。

高精度的滤色片转盘系统和LED 转盘系统在不同波段转换时，既灵活轻巧又定位准确，确保每个波段都能得到充分而均匀的激发光照明。

高品质的光学系统及先进的消杂光系统，大大提高了荧光图像的信噪比。大数值孔径的荧光物镜，使荧光亮度大幅度提高，使您能观察到满意的荧光效果。

人性化的设计，方便的操作系统，新颖的外观设计将是您的最佳选择。

XYL-700Y five wave bands LED fluorescent microscope is widely used in biology,medicine,immunology,oncology, genetics,materials science and other fields.It has five wave bands as G,B,BV,V,U,and meanwhile,the conventional transmission observation can be proceeded.

High precision filters and LED revolver system makes the conversion of the different wave bands flexible,soft and accurate positioning.It also ensures that each wave band can be illuminated by excitation light fully and equably.

High quality optical system and advanced stray light elimination system greatly increased the Signal-to-Noise of the fluorescent image.Large N.A.fluorescent objectives greatly increased the fluorescent intensity.It can make you observe the satisfactory fluorescent effect.

Humanized configuration design,convenient operation system and novel appearance would be your best choice.

技术规格 Specification
光学系统Optical system	无限远光学系统		Infinite optical system
观察头Viewing Head	30°铰链式三目，可调瞳距50mm-75mm		compensation Free Trinocular Head Inclined at 30° (50mm-75mm)
目镜Eyepiece	宽视场平场目镜WF10X/22mm		Plan WF10X/22mm
物镜Objective	平场无限远大数值孔径荧光物镜 4X/0.15(W.D.=21.6mm) 10X/0.35(W.D.=2.9mm) 20X/0.60(W.D.=1.5mm) 40X/0.75(W.D.=0.6mm)		Infinite Plan large N.A fluorescent objectives 4X/0.15(W.D.=21.6mm) 10X/0.35(W.D.=2.9mm) 20X/0.60(W.D.=1.5mm) 40X/0.75(W.D.=0.6mm)
转换器Nosepiece	六孔转换器		Sextuple Nosepiece
平台Stage	双层移动平台		Doublelayer mechanical stage Stage Size:180X160mm Moving range:80mmX50mm
	平台尺寸	180×160mm
	移动范围：80mm×50mm
调焦Focusing	粗微动同轴调焦，微动格值0.002mm		Coaxial coarse &fine focusing adjustment,fine focusing scale value 0.002mm
光源Light Source	落射照明 Kohler照明，带孔径光阑和视场光栏 LED灯3V/5W,AC85V-230V,亮度连续可调		Epi-illumination: Kohler illmination with aperture iris diaphragm
			and field iris diaphragm 3W LED bulb 3V/5W,AC 85V-230V, Brightness adjustable
	透射照明 Kohler照明，带孔径光阑和视场光栏 3WLED,AC85V-230V,亮度连续可调		Transmission illumination: Kohler illumination with aperture iris diaphragm and field iris diaphragm 3W LED bulb,AC 85V-230V,brightness adjustable
荧光镜盒 Fluorescent attachment	G、B、BV、V、UV		G、B、BV、V、UV
可供附件 Optional Accessory	目镜：WF15X/17mm、WF20X/12.5mm 物镜：平场无限远大数值孔径荧光物镜 100x0.90（干）(W.D.=0.62mm) 摄影装置及CCD接口：0.5X、0.57X、0.75X 图像分析软件荧光数字CCD		Eyepiece: WF15X/17mm,WF20X/12.5mm Objective: Infinite Plan large N.A fluorescent objective 100X0.90(Dry)(W.D.=0.62mm) Photography attachment and CCD C mount: 0.5X,0.57X,0.75X Image analysis software Fluorescent digital CCD
