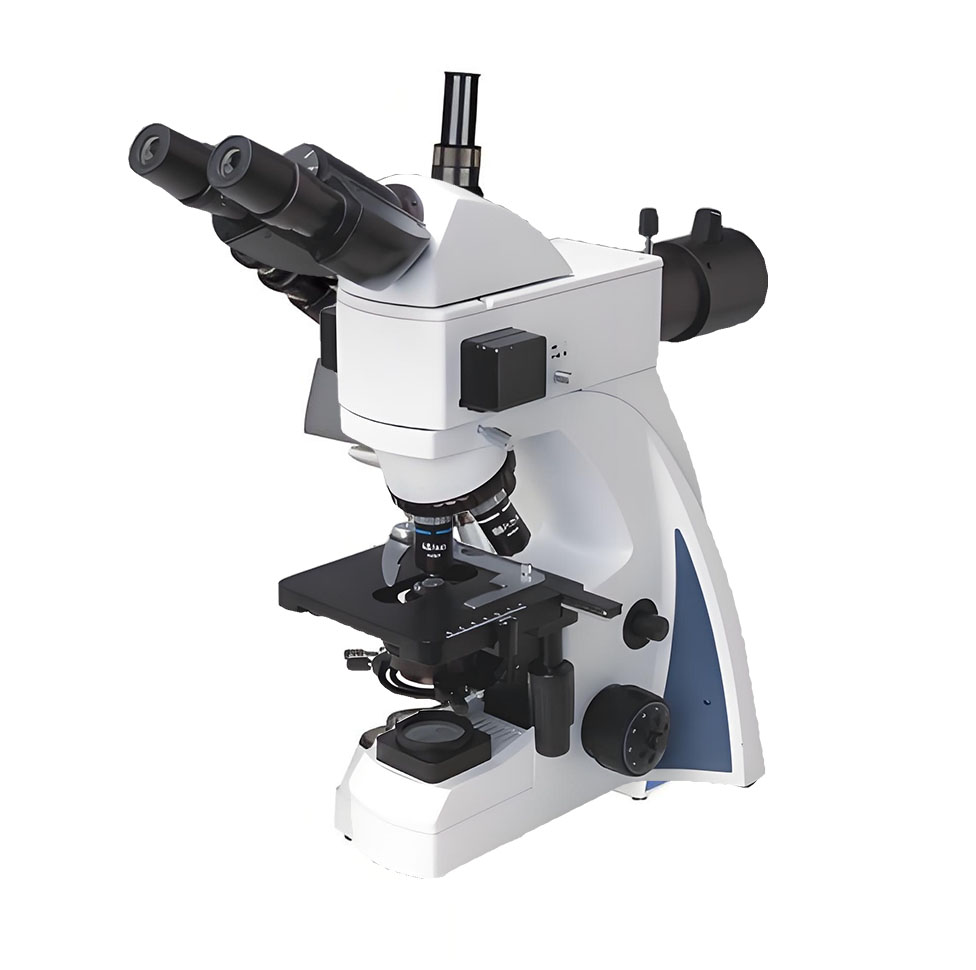

N-300F(LED) Fluorescent Microscope

光学系统Optical System

无限远光学系统Infinite optical system

●

观察头
Viewing Head

铰链式双目头，30°倾斜，瞳距48-75mm
Compensation free binocular head inclined at 30°,interpupillary 48-75mm

●

目镜Eyepiece

WF10X/18

●

转换器Nosepiece

内向式四孔转换器Backward quadruple nosepiece

●

无限远物镜
Infinite Objective

半平场消色差物镜
Semi-plan Achromatic Objective

4X

●

10X

●

20X

O

40X

●

100X

●

荧光物镜Fluorescent Objective

4X,10X,20X,40X,100X

O

聚光镜Condenser

固定式聚光镜NA1.25 Condenser NA1.25

●

焦距调节
Focusing

同轴粗微调机构，微调格值0.002mm
Coaxial coarse &fine adjustment,Fine division 0.002mm

●

载物台
Stage

双层活动平台140X140/75X50
Double layers mechanical stage140X140/75X50

●

摄影附件Photo Attachment

O

摄像接筒Video Adapter

O

照明系统

Illumination

S-LED照明，亮度连续可调S-LED Illumination,Brightness Adjustable

●

6V/20W卤素灯Halogen lamp 6V/20W

O

垂直照明装置
Reflected Light Source

激发

Excitation

分色

Dichroic Mirror

截止

Barrier Filter

B激发光波滤色组件
Blue Excitation

BP460～490

DM505

BA515

●

G激发光波滤色组件

Green Excitation

BP510～550

DM570

BA590

O

光源

Lamp

3W LED (465-475nm)

●

3W LED(525-530nm)

O

折射率油Immersion Oil

无荧光油Fluorescent free oil

●
