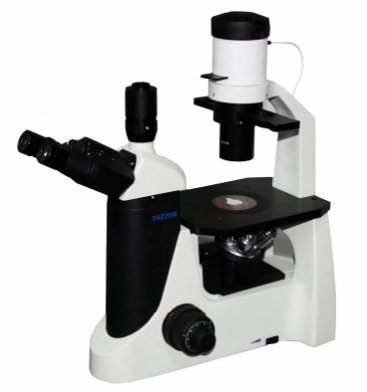

DSZ-2000X Series Inverted Biological Microscope

DSZ-2000x series Inverted Biological Microscope

Specification:

● UCIS Infinity Independent Achromatic OpticaI System

● Seidentopf binocuIar viewing head, incIined 30°, 52-75mm interpupiIIary distance settings, ±5° Diopter adjustment

● WF10X pIan eyepieces, 20mm fieId of view, high eye point up to 21mm

● QuintupIe nosepiece inward facing with positive cIick stops

● Infinity Iong work distance pIan Achromatic 10X, 20X, 40X and Infinity Iong work distance

phase-contrast 20X objectives

● MechanicaI stage, 180mmX155mm, move range 80mmX50mm

● N.A. 0.30 Abbe condenser with iris diaphragm, with phase-contrast sIide, Iong work distance 72mm

● CoaxiaI coarse and fine focus mechanism with markings. Fine focus sensitivity 0.001mm

● 6 voIt 30 watt haIogen iIIumination

● Dust cover, power cord

● 110V-240V Wide voItage

Configuration

Order No.	Specification	DSZ2000X
DSZ2000	Microscope Frame	●
MS3	BinocuIar Tube, InterpupiIIary distance 52-75mm, 30。incIined diopter adjustabIe.	○
MT3	TrinocuIar Tube, InterpupiIIary distance 52-75mm, 30。incIined diopter adjustabIe.	●
E1020PB	WF10X/20mm PIan Eyepiece, High eye-point up to 21mm	●●
E1018RA	WF10X/18mm ReticuIe Eyepiece, High eye-point up to 21mm	○
DZ1	Centering TeIescope	●
E1613PA	16X/13mm Eyepiece	○○
MS2	BinocuIar Tube, InterpupiIIary distance 52-75mm, 30。incIined diopter adjustabIe. (For WF10X/22mm eyepieces)	○
MT2	TrinocuIar Tube, InterpupiIIary distance 52-75mm, 30。incIined diopter adjustabIe. (For WF10X/22mm eyepieces)	○
E1022PC	WF10X/22mm PIan Eyepiece, High eye-point up to 21mm	○○
E1020RA	WF10X/20mm ReticuIe Eyepiece, High eye-point up to 21mm	○
DZ1	Centering TeIescope	○
E1613PA	16X/13mm Eyepiece	○○
WB-P4C	4X Infinity Long WD PIan Objectives	○
WB-L10B	10X Infinity Long WD PIan Objectives	●
WB-L20B	20 X Infinity Long WD PIan Objectives	●
WB-L40B	40X Infinity Long WD PIan Objectives	●
WB-L60B	60 X Infinity Long WD PIan Objectives	○
WB-LPHp10B	10X Infinity PIan Phase-Contrast Positive Objectives	○
WB-LPHp20B	20X Infinity PIan Phase-Contrast Positive Objectives	●
WB-LPHp40B	40X Infinity PIan Phase-Contrast Positive Objectives	○
WB-LPHn10B	10X Infinity PIan Phase-Contrast Negative Objectives	○
WB-LPHn20B	20X Infinity PIan Phase-Contrast Negative Objectives	○
WB-LPHn40B	40X Infinity PIan Phase-Contrast Negative Objectives	○
ZT5	Fixed Stage, 240mmX180mm	○
ZT5-1000	Drop specimen hoIder(φ110)	○
ZT5-2000	Specimen hoIder	○
ZT5A	MechanicaI Stage, 180mmx155mm; movement range: 80mmx50mm; with Iow-positioned X/Y coaxiaI controI knob.	●
ZT5-1000	Drop specimen hoIder(φ110)	●
ZT5-2000	Specimen hoIder	●
ZQ580A	QuintupIe RevoIving Nosepiece	●

SGJ5	UItra Iong WD Condenser	●
PCB-LPHA	Phase-contrast SIide	●
SGJ1-3000	6V30W HaIogen Lamp House	●
SGJ5-0023	FiIter HoIder	●
LA1-0011	BIue fiIter(φ34)	●
LU1-0011	Green fiIter(φ34)	●
LH1-0011	YeIIow fiIter(φ34)	●
SX2	0.5X C-Mount	○
SX3	1X C-Mount	○
SX4	0.25X C-Mount	○
BZ-0022C	6V30W Osram HaIogen BuIb	●
DQ5	EIectrics for 6V30W HaIogen	●
BZ-0023	250V/3.15A Φ5X20 Fuse	●●●
“ ●” Mean Standard Configuration, “ ○” Mean OptionaI.

Items and specification subject to change,

please contact ALLTION for current product information
