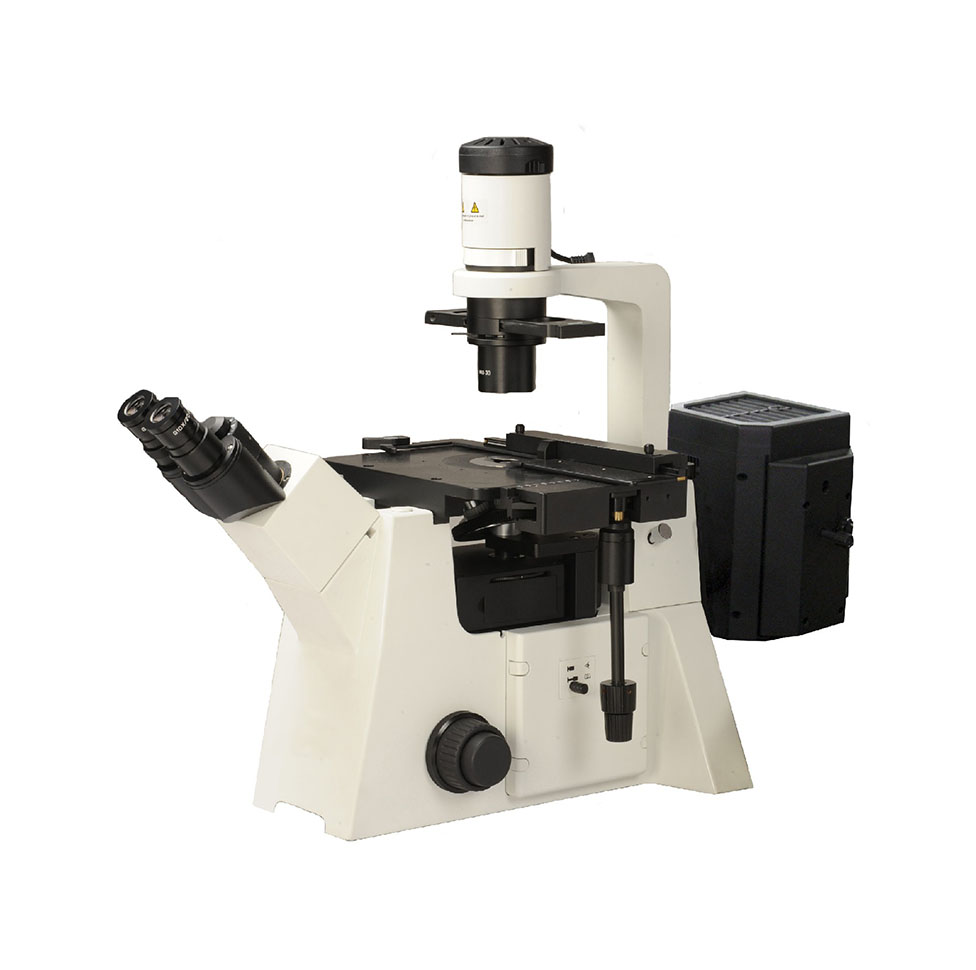

DSY-5000X Series Inverted Fluorescent Microscope

Frame

One-piece construction from arm to base.

DSZ5000

●

Seidentopf

Observation Tube

Binocular  Tube,   Interpupillary   distance   52-75mm,45°inclined,diopter adjustable.

MS1

●

Binocular  Tube,   Interpupillary   distance   48-75mm,45°inclined,diopter adjustable.

MS1A

○

Eyepieces

WF10X/20mm Plan Eyepiece, High eye-point up to 21mm

E1020PA

●●

WF10X/22mm Plan Eyepiece, High eye-point up to 21mm

E1022PC

○○

WF10X/20mm Reticule Eyepiece, High eye-point up to 21mm

E1020RA

○

Centering Telescope

DZ3

●

Plan Eyepiece16X/13mm

E1613PA

○○

Objectives

4X Infinity Long WD Plan Objectives

WB-L4A

○

10X Infinity Long WD Plan Objectives

WB-L10A

●

20 X Infinity Long WD Plan Objectives

WB-L20A

●

40X Infinity Long WD Plan Objectives

WB-L40A

●

60 X Infinity Long WD Plan Objectives

WB-L60A

○

Phase-Contrast Objectives

10X Infinity Plan Phase-Contrast Positive Objectives

WB-LPHp10A

○

20X Infinity Plan Phase-Contrast Positive Objectives

WB-LPHp20A

●

40X Infinity Plan Phase-Contrast Positive Objectives

WB-LPHp40A

○

10X Infinity Plan Phase-Contrast Negative Objectives

WB-LPHn10A

○

20X Infinity Plan Phase-Contrast Negative Objectives

WB-LPHn20A

○

40X Infinity Plan Phase-Contrast Negative Objectives

WB-LPHn40A

○

Stage

Fixed  Stage,  240mmX260mm;  movement  range:  135mmx85mm;  with low-positioned X/Y coaxial control knob.

ZT1

●

Drop specimen holder(φ118)

ZT1-1000

●

Specimen holder(125X85)

1D-0022

○

Specimen holder(76X26, φ54)

1D-0021

●

Mechanical  Stage,  350mmx208mm;   movement   range:  50mmx50mm; with low-positioned X/Y coaxial control knob.

ZT1A

○

Revolving  Nosepiece

Quintuple Revolving Nosepiece

ZQ580A

●

Transmitted Light Illumination

Ultra long WD Condenser

SGJ1

●

Phase-contrast  slide(For   10X/20X/40X  phase  contrast  and  brightfield observation)

PCB-LPHA

●

6V30W halogen lamphouse

SGJ1-3000

●

Blue filter(φ34)

LA1-1000

●

Green filter(φ34)

LU1-1000

●

6V30W Halogen Bulb

BZ-0022B

○○○

6V30W Osram halogen bulb

BZ-0022C

●

6V30W Power supply for halogen lamphouse

DYX1

●

250V/3.15A Φ5X20 fuse

BZ-0023

●●●

Fluorescence Illumination

100W Mercury lamphouse

DX20

●

100W Power supply for mercury lamphouse

DYX3

●

250V/5A Φ5X20 fuse

BZ-0023A

●

Multi-functional semi-reflector

DLST1

●

UV Excitation Filter(C Grade)

YGMKC-UV

○

UV Excitation Filter(I Grade)

YGMKI-UV

●

V Excitation Filter(C Grade)

YGMKC-V

○

V Excitation Filter(I Grade)

YGMKI-V

●

B Excitation Filter(C Grade)

YGMKC-B

○

B Excitation Filter(I Grade)

YGMKI-B

●

G Excitation Filter(C Grade)

YGMKC-G

○

G Excitation Filter(I Grade)

YGMKI-G

●

100W Mercury Bulb(Made in China)

BZ-0022H

●

100W Mercury Bulb(Osram)

BZ-0022I

○

C-Mount

0.5XC-Mount

SX1

●

0.25XC-Mount

SX5

○

Others

φ2.5mm Allen Screw Driver

BZ1-0018

●

φ2mm Allen Screw Driver

BZ2-0018

●

Power cord

BZ-0021

●

Dust Cover

BZ1-0014

●
