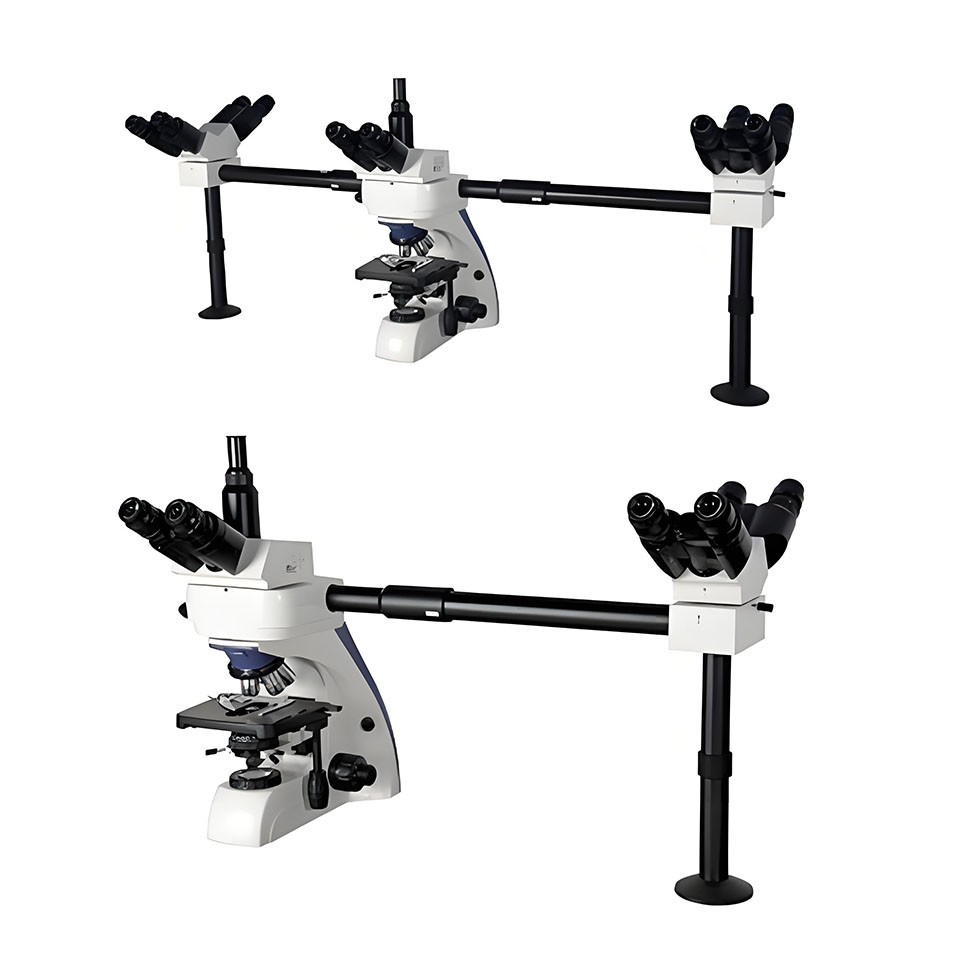

XSZ-510 Multi-viewing Demonstration Biological Microscope

XSZ-510

XSZ-510A

光学系

system

无限远光学系统

Infinite optical system

●

●

观察头

Viewing Head

30°铰链式三目

可调瞳距50mm - 75mm

Compensation Free Trinocular Head Inclined at 30°(50mm-75mm)

●

●

五人十目

4-Binocualr  head, interpupillary distance

adjustable 50mm-75mm

●

三人六目

2-Binocular head,interpupillary distance

adjustable  50mm   -75mm

●

目镜Eyepiece

宽视场平场目镜WF10X/22mm

Plan  WF10X/22mm

●

●

物镜

Objective

平场无限远物镜

4X/0.10、10X/0.25、40X/0.65、100X/1.25(Oil)

Infinity plan objective

4X/0.10、10X/0.25、40X/0.65、100X/1.25(Oil)

●

●

转换器

Nosepiece

四孔转换器

Quadruple Nosepiece

●

●

平台Stage

双层移动平台

平台尺寸：180×160mm

移动范围：80mm×50mm

Double layers mechanical stage

Stage size:180X160mr

Moving range:80mmX50mm

●

●

调焦Focusing

粗微动同轴调焦，微动格值0.002mm

Coaxial coarse &fine focusing adjustment fine focusing scale value 0.002mm

●

●

光源source

Kohler 照明，带孔径光阑和视场光栏

卤素灯12V/100W, AC85V - 230V, 亮度连续可调

Kohler illumination with aperture iris diaphragm and field iris diaphragm

Halogen Bulb 12V/100W,AC85V-230V, brightness adjustable

●

●

示教指针Indicator

LED示教指针，亮度可调

LED cursor,brightness adjustable

●

●

可供附件

Optional Accessory

目镜：WF15X/17mm、WF20X/12.5mm

平场无限远物镜：20X/0.40、60X/0.85

半平场无限远物镜：4X/0.10、10X/0.25、

20X/0.40、40X/0.65、60X0.85、100X1.25(Oi)

摄影装置及CCD接口：0.5X、0.57X、0.75X 130万、200万、300万、500万、1000万

像素电子目镜

彩色1/3寸CCD700条线

图像分析软件

Eyepiece:WF15X/17mm、WF20X/12.5mm

Infinity plan objective:20X0.40、60X10.85

Infinity semi-plan objective:4X/0.10、10X10.25、

20X/0.40、 40X/0.65、60X/0.85、100X/1.25(Oil)

Photography attachment and CCD C-mount:0.5X、0.57X、

0.75X 1.3Mega、2.0Mega、3.0Mega、5.0Mega、10.0Mega pixels

CMOS Digital camera eyepiece

CCD Camera,colour13” High resolution700 TV lines

Image analysis software
