XSZ-179 Series Biological Microscope

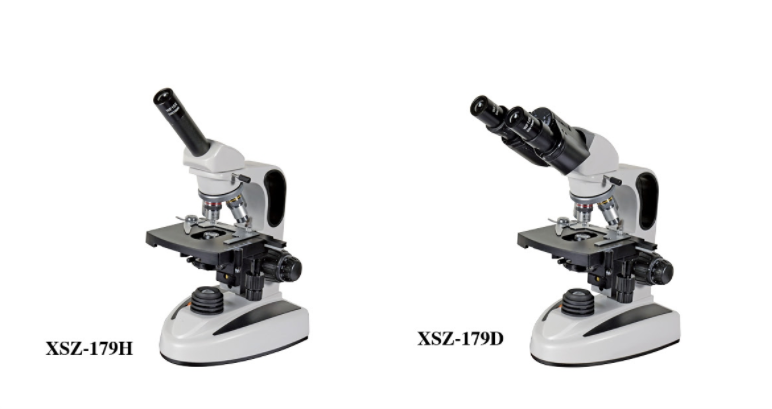

XSZ-179H

XSZ-179D

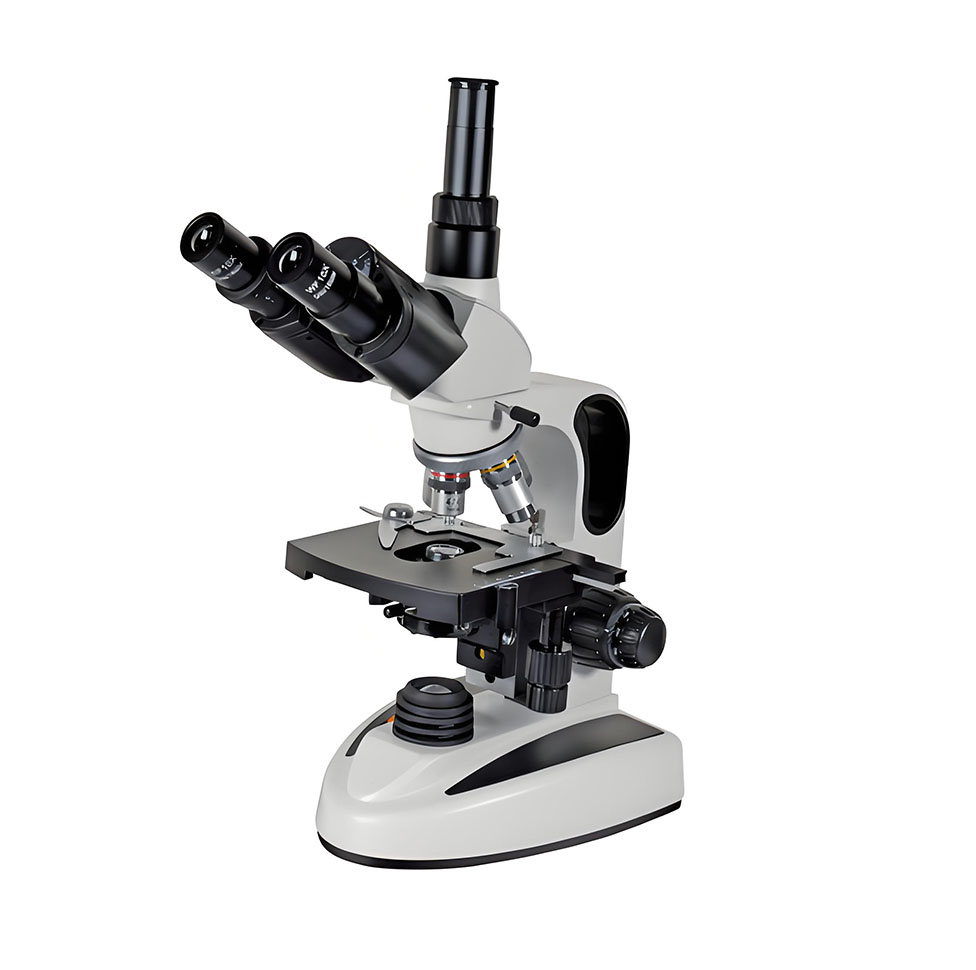

XSZ-179E

观察头

Viewing

head

单目头45°倾斜，360°旋转

Monocular head,inclined at 45°,360° rotatable

30°铰链式双目观察头(48mm～75mm)

Compensation free binocular head,inclined at 30°,(48mm～75mm)

30°铰链式三目观察头(48mm～75mm)

Compensation free trinocular head,inclined at 30°,(48mm～75mm)

目镜

Eyepiece

WF10X/18mm

WF10X/18mm

●

物镜

Objective

消色差4X,10X,40X(S),100X(S)Oil

Achromatic objective:4X,10X,40X(S),100X(S)Oil

●

平台

Stage

双层移动平台

Double layers mechanical stage

平台尺寸：135mmX135mm

Stage Size:135mmX135mm

●

●

移动范围：70mmX50mm

Moving range:70mmX50mm

聚光镜

Condenser

N.A.1.25阿贝聚光镜带可变光栏和滤色片架

N.A.1.25 Abbe condenser with iris diaphragm and filter holder

●

调焦

Focusing

粗、微动同轴调焦机构 微动格值0.002mm

调焦范围30mm

Coaxial coarse &fine focusing adjustment Fine focusing scale value 0.002mm

Focusing range 30mm

●

光源

Light

LED亮度可调

LED,brightness adjustable

●

可供附件

Optional

Accessory

目镜：WF16X、WF20X、P16X

物镜：20X(S)、60X(S)

反光镜、示教头

Eyepiece:WF16X、WF20X、P16X

Objective:20X(S)、60X(S)

Reflector, Dual viewing head
