XSZ-178 Series Biological Microscope

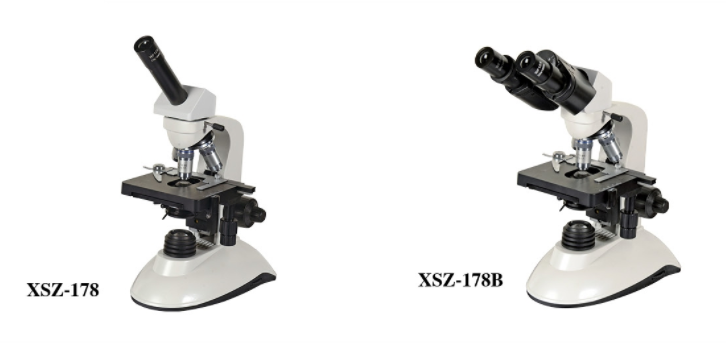

XSZ-178

XSZ-178B

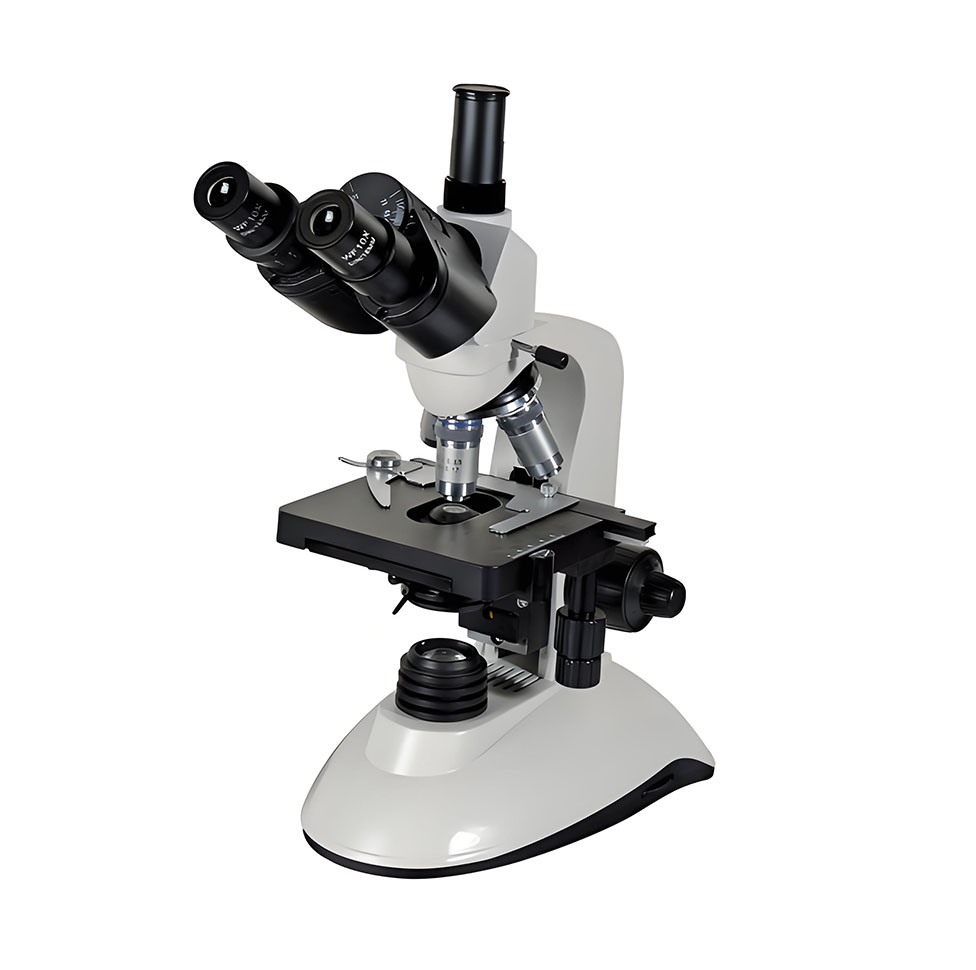

XSZ-178T

观察头

Viewing

head

单目头45°倾斜，360°旋转

Monocular head,inclined at 45°, 360°rotatable

30°铰链式双目观察头(48mm～75mm)

Compensation free binocular head, inclined at 30°,(48mm～75mm)

●

30°铰链式三目观察头(48mm～75mm)

Compensation free trinocular head,inclined at30°,(48mm～75mm)

●

目镜

Eyepiece

WF10X/18mm

WF10X/18mm

物镜

Objective

消色差4X,10X,40X(S),100X(S)Oil

Achromatic objective:4X,10X,40X(S),100X(S)Oil

●

平台

Stage

双层移动平台

Double layers mechanical stage

平台尺寸：125mmX130mm

Stage Size:125mmX130mm

●

移动范围：70mmX50mm

Moving range:70mmX50mm

聚光镜

Condenser

N.A.1.25阿贝聚光镜带可变光栏和滤色片架

N.A.1.25 Abbe condenser with iris diaphragm&filter holder

●

●

●

调焦

Focusing

粗、微动同轴调焦机构

微动格值0 . 002mm,调焦范围30mm

Coaxial coarse &fine focusing adjustment,fine focusing scale value 0.002mm focusing range 30mm

●

●

光源

Light

LED亮度可调

LED Brightness adjustable

●

●

可供附件

Optional

Accessory

目镜：WF16X、WF20X、P16X

消色差物镜：20X(S)、60X(S)

半平场物镜：4X、10X、20X(S)、40X(S)、60X(S)、100X(S)Oil

全平场物镜：4X、10X、20X(S)、40X(S)、60X(S)、100X(S)Oil

示教头

暗视场和相称装置

130万、300万、500万、1000万COMS电子目镜

摄影装置及CCD接口0.5X、0.57X、0.75X

彩色1/3寸CCD700条线

Eyepiece:WF16X、WF20X、P16X

Achromatic Objective:20X(S)、60X(S)

Semi-plan objective:

4X、10X、20X(S)、40X(S)、60X(S)、100X(S)Oil

Plan objective:

4X、10X、20X(S)、40X(S)、60X(S)、100X(S)Oil

Dual viewing head

Dark field and Phase contrast attachment

1.3Mega,3.0Mega,5.0Mega,10.0Mega COMS digital camera eyepiece

Photography attachment and CCD C-mount:

0.5X、0.57X、0.75X

CCD Camera,colour 1/3”High resolution 700 TV lines
