XSZ-172 Series Biological Microscope

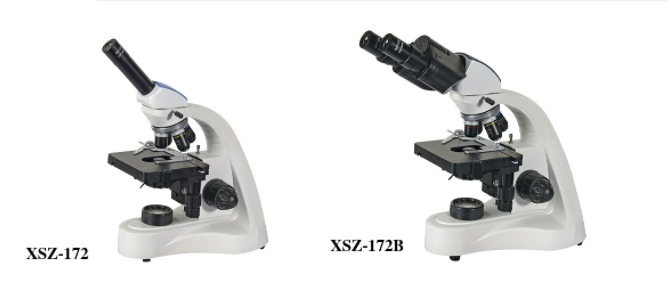

XSZ-172

XSZ-172B

XSZ-172T

观察头

Viewing

head

单目头45°倾斜，360°旋转

Monocular head,inclined at 45°,360° rotatable

30°铰链式双目观察头(48mm～75mm)

Compensation free binocular head,inclined at 30°(48mm～75mm)

●

30°铰链式三目观察头(48mm～75mm)

Compensation free trinocular head,inclined at 30°(48mm～75mm)

●

Eyepiece

WF10X/18mm

WF10X/18mm

●

●

物镜

Objective

消色差4X,10X,40X(S),100X(S)Oil

Achromatic objective:4X,10X,40X(S),100X(S)Oil

●

●

●

平台 Stage

双层移动平台

Double layers mechanical stage

平台尺寸：125mmX130mm

移动范围：70mmX50mm

Stage Size:125mmX130mm

●

●

●

Moving range:70mmX50mm

聚光镜

Condenser

N.A.1.25阿贝聚光镜带可变光栏和滤色片架

N.A.1.25 Abbe condenser with iris diaphragm &filter holder

●

●

●

调焦

Focusing

粗、微动同轴调焦机构，微动格值0.002mm 调焦范围30mm

Coaxial coarse &fine focusing adjustment,fine focusing scale value 0.002mm,focusing range 30mm

●

●

●

光源

Light Source

LED亮度可调

LED,Brightness adjustable

●

●

●

可供附件

Optional

Accessory

目镜：WF16X、WF20X、P16X                                                          Eyepiece:WF16X、WF20X、P16X

消色差物镜：20X(S)、60X(S)                                                            Achromatic Objective:20X(S)、60X(S)

半平场物镜：4X、10X、20X(S)、40X(S)、60X(S)、100X(S)Oil      Semi-plan objective: 4X、10X、20X(S)、40X(S)、60X(S)、100X(S)Oil

全平场物镜：4X、10X、20X(S)、40X(S)、60X(S)、100X(S)Oil      Plan objective: 4X、10X、20X(S)、40X(S)、60X(S)、100X(S)Oil

 示教头                                                                                                Dual viewing head

暗视场和相衬装置                                                                               Dark field and Phase contrast attachment

130万、300万、500万、1000万像素COMS电子目镜                        1.3Mega,3.0Mega,5.0Mega,10.0Mega COMS digital camera eyepiece

摄影装置及CCD接口0.5X、0.57X、0.75X                                         Photography attachment and CCD C-mount:0.5X、0.57X、0.75X

彩色1/3寸CCD700条线                                                                      CCD Camera colour 1/3” High resolution 700 TV lines
