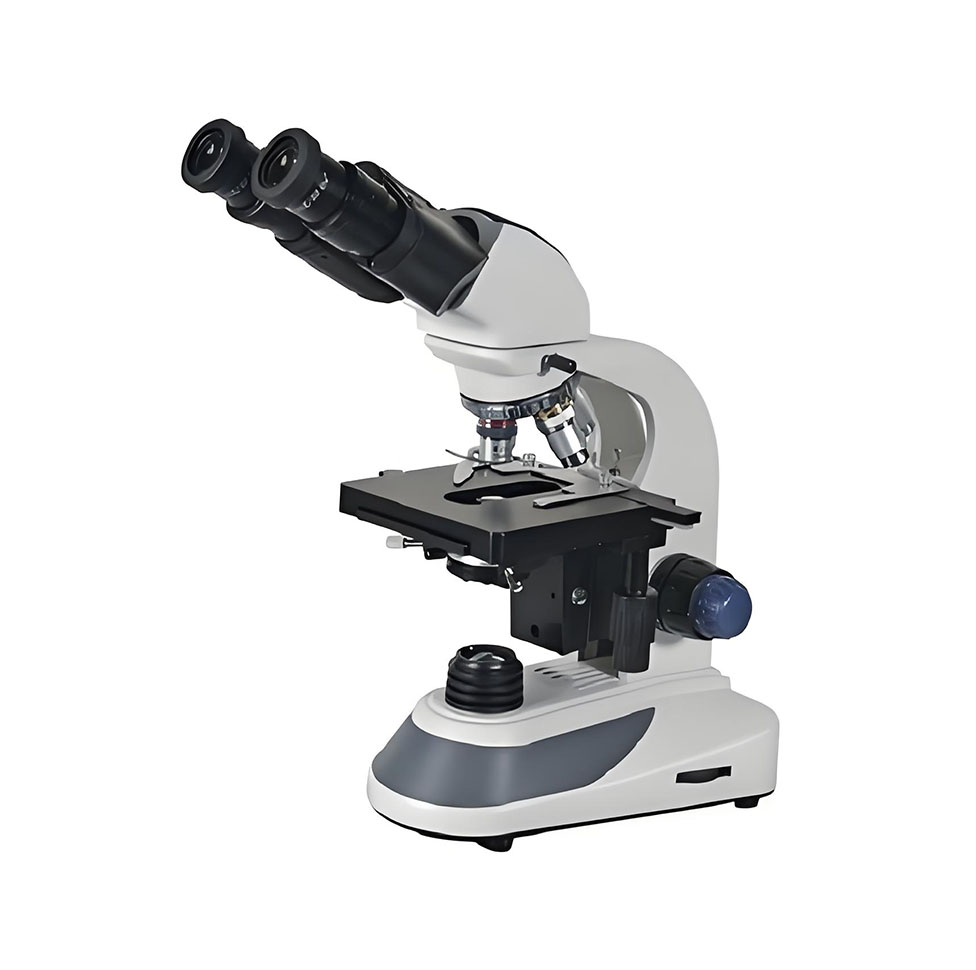

XSZ-170 Series Biological Microscope

技术规格                                          Specification

M o d e l

XSZ-170

XSZ-170T

XSZ-170B

XSZ-170BT





观察头

Viewing head



30°铰链式双目观察头(48mm~75mm)

Compensation free binocular head, inclined at 30°,(48mm~75mm)



30°铰链式三目观察头(48mm~75mm)

Compensation free trinocular head, inclined at 30°,(48mm~75mm)



目镜Eyepiece

WF10X/18mm

WF10X/18mm

WF10X/22mm

WE10X/22mm



物镜Objective

消色差4X,10X,40X(S),100X(S)Oi

Achromatic Objective4X,10X,40X(S),100X(S)Oi

无限远消色差物镜4X,10X,40X(S),100X(S)Oil

Infinity Achromatic Objective 4X,10X,40X(S),100X(S)Oil



平台Stage

双层移动平台

Double layers mechanical stage

平台尺寸:132mmX140mm

Stage Size:132mmX140mm

移动范围:70mmX50mm

Moving Range:70mmX50mm

聚光镜Condenser

N.A.1.25阿贝聚光镜带可变光栏和滤色片架

N.A.1.25 Abbe condenser with iris diaphragm &filter holder

调焦

Focusing

粗、微动同轴调焦机构 微动格值0.002mm

调焦范围30mm

Coaxial coarse &fine focusing adjustment, fine focusing scale value 0.002mm,

focusing range 30mm



光源

Light Source



LED,亮度可调



LED,Brightness adjustable





可供附件

Optional

Accessory

目镜:WF16X、WF20X、P16X                                                                    Eyepiece:WF16X、WF20X、P16X

消色差物镜:20X(S)、60X(S)                                                                       Achromatic Objective:20X(S)、60X(S)

平场物镜:4X、10X、20X(S)、40X(S)、60X(S)、100X(S)Oi                     Plan objective:4X、10X、20X(S)、40X(S)、60X(S)、100X(S)Oi

无限远平场物镜:4X、10X、20X(S)、40X(S)、60X(S)、100X(S)Oi       Infinity plan  objective: 4X、10X、20X(S)、40X(S)、60X(S)、100X(S)Oil

示教头                                                                                                           Dual viewing head

暗视场和相称装置                                                                                         Dark field and Phase contrast attachment

130万、300万、500万、1000万像素COMS电子目镜                              1.3Mega,3.0Mega,5.0Mega,10.0Mega COMS digital camera eyepiece

摄影装置及CCD接口0.5X、0.57X、0.75X                                                  Photography attachment and CCD C-mount:0.5X、0.57X、0.75X

彩色1/3寸CCD700条线                                                                               CCD Camera,colour 13”High resolution 700 TV lines
