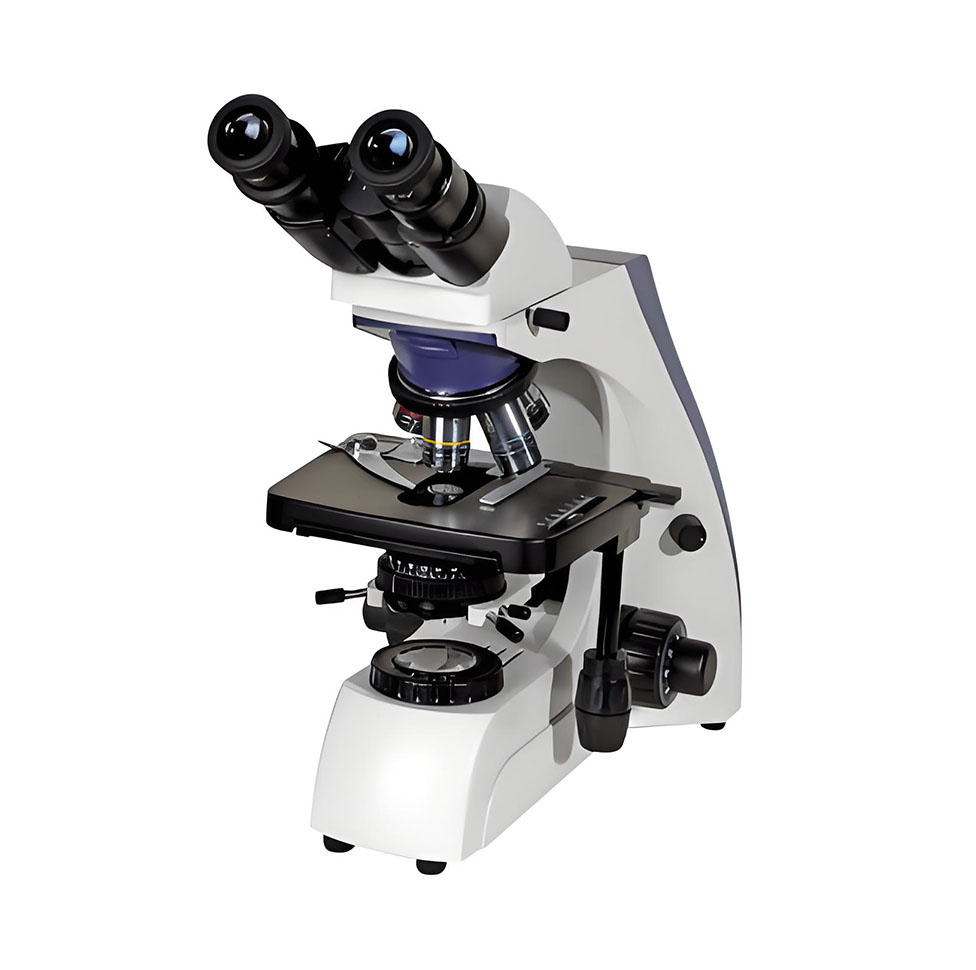

XSZ-159 Series Biological Microscope

高效性，灵活性，稳定性是本类生物显微镜针对各种应用领域日常工作而开发的，从日常到科学研究，可广泛用于各种实验室、学校、医院，其极高的性价比，合理的人性化设计，使其成为个人、医院及科研单位的首选。
High efficiency,flexibility and stability are the characters of this series microscope.It is specially developed for various
application fields.It is widely used,from daily work to scientific research,in laboratory,hospital and college.Because of
higher cost performance and reasonable humanized design, it becomes the first choice of individual,hospital and scientific
research organization.
特点说明：Features:
1.宽广的目镜视场，高亮度照明系统及优质的光学零件使成像高清晰高亮度；
2.内置转换器及优质的物镜，使使用者按自己的习惯操作拥有更便捷的空间及更佳的观察效果；
3.宽大的机械平台及双标本夹为观察及试验者提供便捷；
4.高精度调焦机构及合理的人性化设计让操作者倍感轻松。
1.Wide-field eyepiece,highlight illumination and superior optical components make the image clear,sharp and high brightness.
2.Backward nosepiece with superior objectives make the better viewing effect and more space for operators.
3.Wide mechanical stage with double specimen holder provides more convenient for the observers.
4.High precision focusing adjustment system and humanized configuration design provide operator more relaxing.

技术规格 Specification				型号 M o d e l

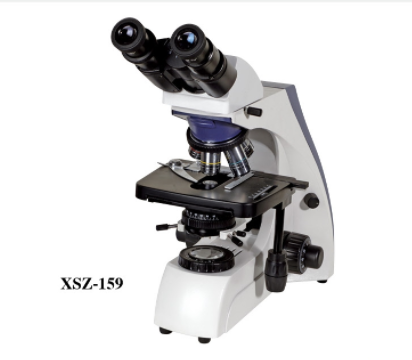

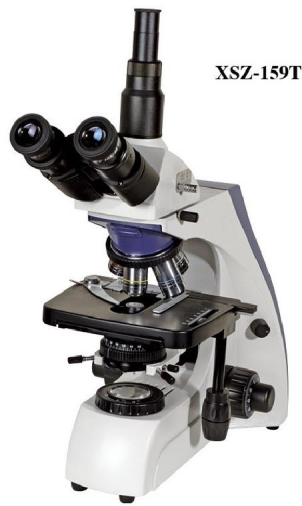

技术规格 Specification				XSZ-159	XSZ-159T
观察头 Viewing head	30°铰链式双目观察头(48mm～75mm)	Compensation free binocular head,inclined at 30°,(48mm～75mm)		●
观察头 Viewing head	30°铰链式三目观察头(48mm～75mm)	Compensation free trinocular head,inclined at 30°,(48mm～75mm)			●
目镜Eyepiece	WF10X/22mm	WF10X/22mm		●	●
物镜Objective	无限远半平场物镜4X,10X,40X(S),100X(S)Oi	Infinite Semi-Plan objective:4X,10X,40X(S),100X(S)Oil		●	●
平台Stage	双层移动平台	Double layers mechanical stage
	平台尺寸：180mmX160mm	Size:180mmX160mm		●	●
	移动范围：80mmX50mm	Moving Range:80mmX50mm		●	●
聚光镜 Condenser	N.A.1.25阿贝聚光镜带可变光栏和滤色片架	N.A.1.25 Abbe condenser with iris diaphragm&filter holder		●	●
调焦 Focusing	粗、微动同轴调焦，采用齿轮齿条传动机构，微动格值0.002mn	Coaxial coarse &fine focusing adjustment with rack and pinion mechanism,fine focusing scale value0.002m		●	●
集光镜Collector	高亮度柯勒照明	High brightness Kohler illumination		●	●
光源 Light Source	卤素灯12V/30W.AC85V～230V 亮度可调	Halogen bulb 12V/30W,AC85V-230V Adjustable brightness		●	●
可供附件 Optional Accessory	目镜：WF16X、WF20X、P16X、及300万像素CMOS电子目镜无限远半平场物镜：20X(S)、60X(S) 无限远平场物镜： 4X、10X、20X(S)、40X(S)、60X(S)、100X(S)Oil 光源：LED亮度可调相称附件摄影装置及CCD接口0.5X、0.57X、0.75X、1X 130万、200万、300万、500万、1000万像素电子目镜彩色1/3寸CCD700条线		Eyepiece:WF16X、WF20X、P16Xand 3.0Mega CMOS Digital camera eyepiece Infinite Semi-Plan objective:20X(S)、60X(S) Infinite Plan Objective:4X、10X、20X(S)、40X(S)、60X(S)、100X(S)Oi Light Source:LED,Adjustable brightness Phase contrast attachment Photography attachment and CCD C-mount:0.5X、0.57X、0.75X、1X 1.3Mega、2.0Mega、3.0Mega、5.0Mega、10.0Mega pixels CMOS Digital camera eyepiece CCD Camera,colour 1/3”High resolution 700 TV lines
