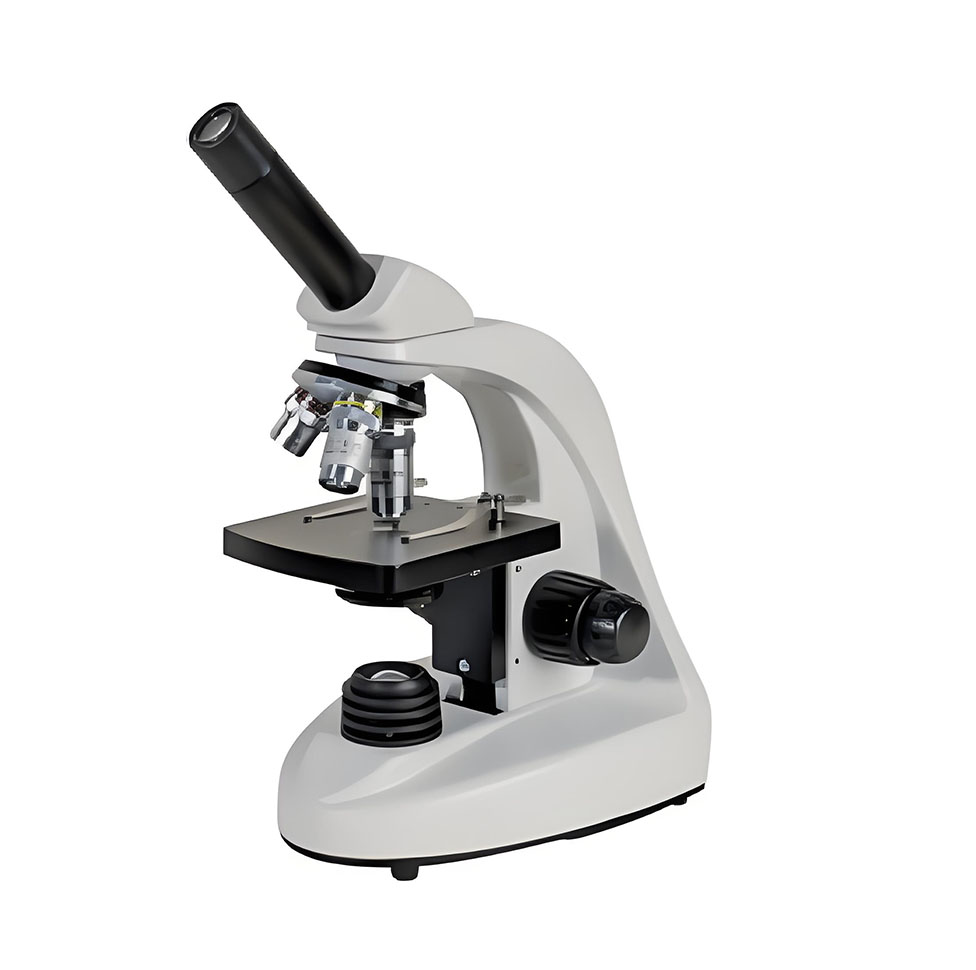

SME-F9 Series Biological Microscope

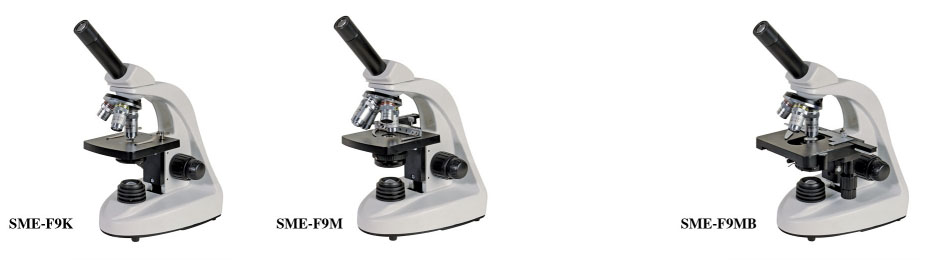

SME-F9

SME-F9K

SME-F9M

SME-F9MB

观察头

Viewing Head

单目头45°倾斜，360°旋转

Monocular Inclined at 45°,360° rotatable

●

●

●

●

目镜Eyepiece

WF10X/18MM

WF10X/18MM

●

●

●

●

物镜Objective

消色差4X、10X、40X(s)

Achromatic 4X、10X、40X(s)

●

●

消色差4X、10X、40X(s)、100X(s)oil

Achromatic 4X、10X、40X(s)、100X(s)oil

●

●

平台Stage

简易平台带切片压片，平台尺寸：110mm×120mm

Plain stage with slide clips,Stage size:110mm×120mm

●

●

平台移动尺

平台尺寸：110mmX120mm 移动范围：60mmX30mm

Mechanical stage

Stage size:110mmX120mm

Moving range:60mmX30mm

●

双层移动平台

平台尺寸：110mmX126mm

移动范围：70mmX30mm

Double layers mechanical stage

Stage size:110mmX126mm

Moving range:70mmX30mm

●

聚光镜

Condenser

0.65聚光镜带拨盘光栏

0.65 Condenser with disc diaphragm

●

0.65聚光镜带可变光栏

0.65 Condenser with iris diaphragm

●

N.A.1.25阿贝聚光镜带可变光栏及滤色片架

N.A.1.25 Abbe Condenser with iris diaphragm and filter holder

●

●

调焦

Focusing

粗、微动同轴调焦机构微动格值0.002mm

Coaxial coarse &fine focusing adjustment Fine focusing scale value 0.002mm

●

●

●

●

光源

Light Source

LED 1W,220V/110V

LED 1W,220V/110V

●

●

●

●

可供附件

Optional

Accessory

目镜：WF16X、WF20X、P16X                                                     Eyepiece:WF16X、WF20X、P16X

物镜：20X、60X(S)                                                                       Objective:20X、60X(S)

半平场物镜：4X、10X、20X(S)、40X(S)、60X(S)、100X(S)Oil      Semi-plan Objective:   4X、10X、20X(S)、40X(S)、60X(S)、100X(S)Oil

全平场物镜：4X、10X、20X(S)、40X(S)、60X(S)、100X(S)Oil      Plan Objective: 4X、10X、20X(S)、40X(S)、60X(S)、100X(S)Oil

示教头

130万、300万、500万、1000万像素COMS电子目镜

摄影装置及CCD接口0.5X、0.57X、0.75X

Dual Viewing Head

1.3Mega,3.0Mega,5.0Mega,10.0Mega pixels CMOS Digital camera eyepiece

Photography attachment and CCD C-mount 0.5X、0.57X、0.75X
