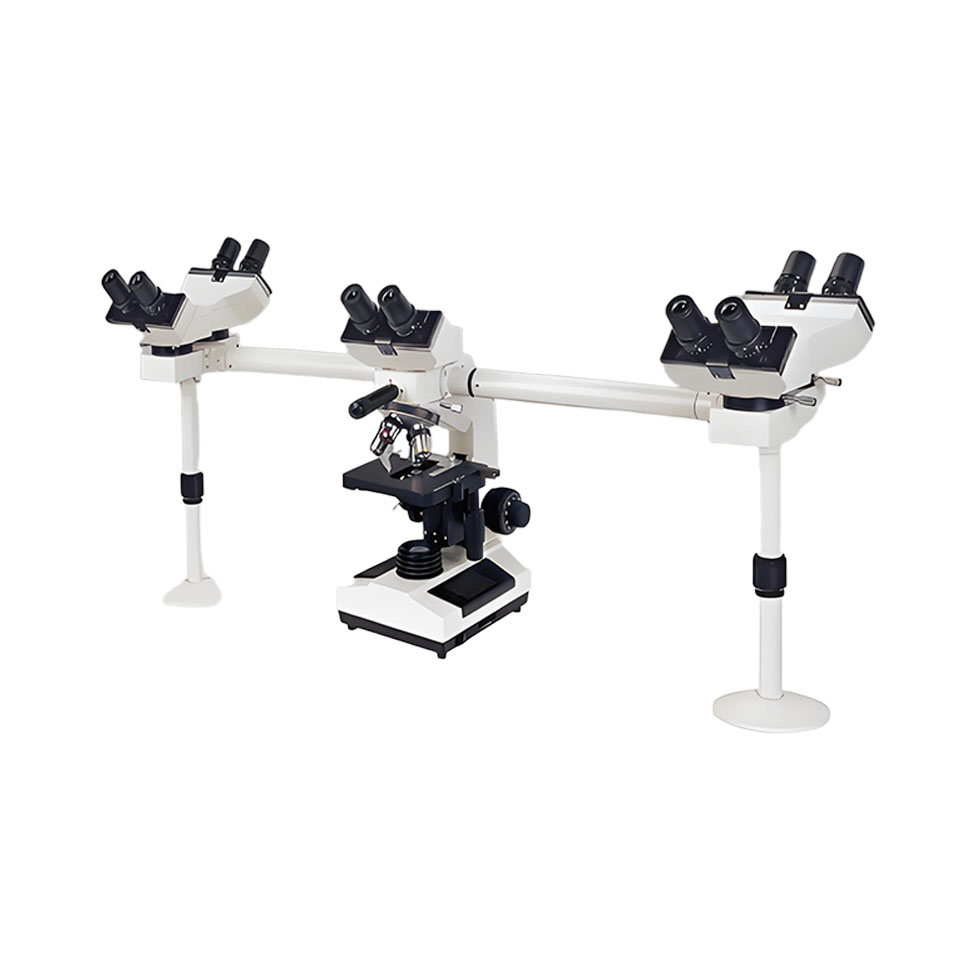

XSZ-N204 & XSZ-N304 & XSZ-N510 Muti-viewing Microscope

观察头
Viewing Head

平移式双目头，45°倾斜
Sliding Binocular Head,Inclined at 45°

2PCS

1PC

5PCS

单目头，45°倾斜
Monocular Head,Inclined at 45°

2PCS

目镜Eyepiece

大视场目镜WF10X Wide Field Eyepiece WF10X

4PCS

4P CS

10PCS

转换器Nosepiece

外向式四孔转换器Quadruple Nosepiece

●

●

●

物镜
Objective

消色差物镜4X、10X、40X、100X
Achromatic Objective 4X、10X、40X、100X

●

●

●

聚光Condenser

阿贝聚光镜NA1.25 Abbe Condenser NA1.25

●

●

●

焦距调节
Focusing System

同轴粗微调焦机构，微调格值0.002mm,粗动行程每圈37.7mm,微动行程每圈0.2mm,调焦范围28mm
Coaxial Coarse and Fine Adjustment,Fine Division 0.002mm,Coarse Stroke 37.7mm per Rotation,Fine Stroke 0.2mm per Rotation,Moving Range 28mm

●

●

●

载物台
Stage

双层活动平台，尺寸140X140mm,移动范围75X50mm
Double Layers Mechanical Stage 140X140mm/75X50mm

●

●

●

照明
Illumination

S-LED照明，亮度连续可调S-LED Illumination,Brightness Adjustable

●

●

●

6V/20W卤素灯Halogen Lamp 6V/20W

O

O

24V/100W卤素灯Halogen Lamp 24V/100W

O

示教指针
Pointer

绿色LED示教指针，亮度可调
Green LED Pointer ,Brightness Adjustable

●
