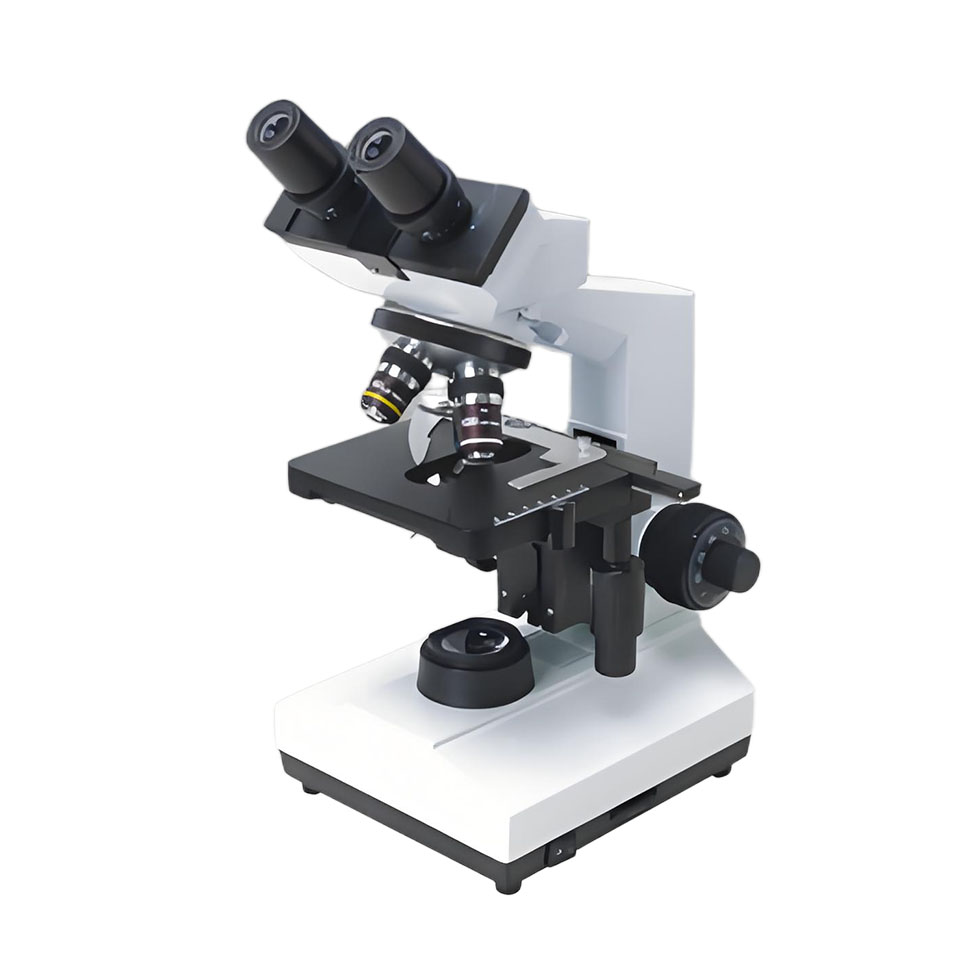

XSZ-107T & XSZ-N107T Biological Microscope

观察头
Viewing Head

平移式双目头Sliding Binocular Head

●

●

平移式三目头Sliding Trinocular Head

O

O

铰链式双目头Seidentopf Binocular Head

O

O

防霉装置Anti-mould

O

●

目 镜
Eyepiece

WF10X

●

●

P16X

O

O

转换器
Nosepiece

四孔转换器Quadruple Nosepiece

●

●

五孔转换器Quintuple Nosepiece

O

O

物镜Objective

消色差物镜4X、10X、40X、100X Achromatic Objective 4X,10X,40X,100X

●

●

平台
Stage

双层活动平台140X140mm,移动范围75X50mm
Double Layers Mechanical Stage 140X140mm/75X50mm

●

●

聚光镜Condenser

NA1.20阿贝聚光镜带可变光栏和滤色片Abbe NA1.20 with Iris Diaphragm &Filter

●

●

调焦系统
Focusing System

同轴粗微调焦机构，微调格值0.002mm,粗动行程每圈37.7mm,微动行程每圈0.2mm,调焦范围28mm
Coaxial Coarse and Fine Adjustment,Fine Division 0.002mm,Coarse Stroke 37.7mm per Rotation,
Fine Stroke 0.2mm per Rotation,Moving Range 28mm

●

●

扶手板Armrest

黑色扶手板Black Armrest

O

●

橡皮手轮套
Rubber Cover

橡皮手轮套
Rubber Cover for Focus Adjustment Knob

O

●

照明系统
Illumination

S-LED照明，亮度连续可调S-LED Illumination,Brightness Adjustable

●

●

100V-240V/6V20W卤素灯Halogen Lamp 100V-240V/6V20W

O

O

平凹反光镜Plan-concave Mirror

●

●

包装
Package

泡沫Styrofoam

●

●

纸箱Carton

●

●

木箱Wooden Case

O

O
