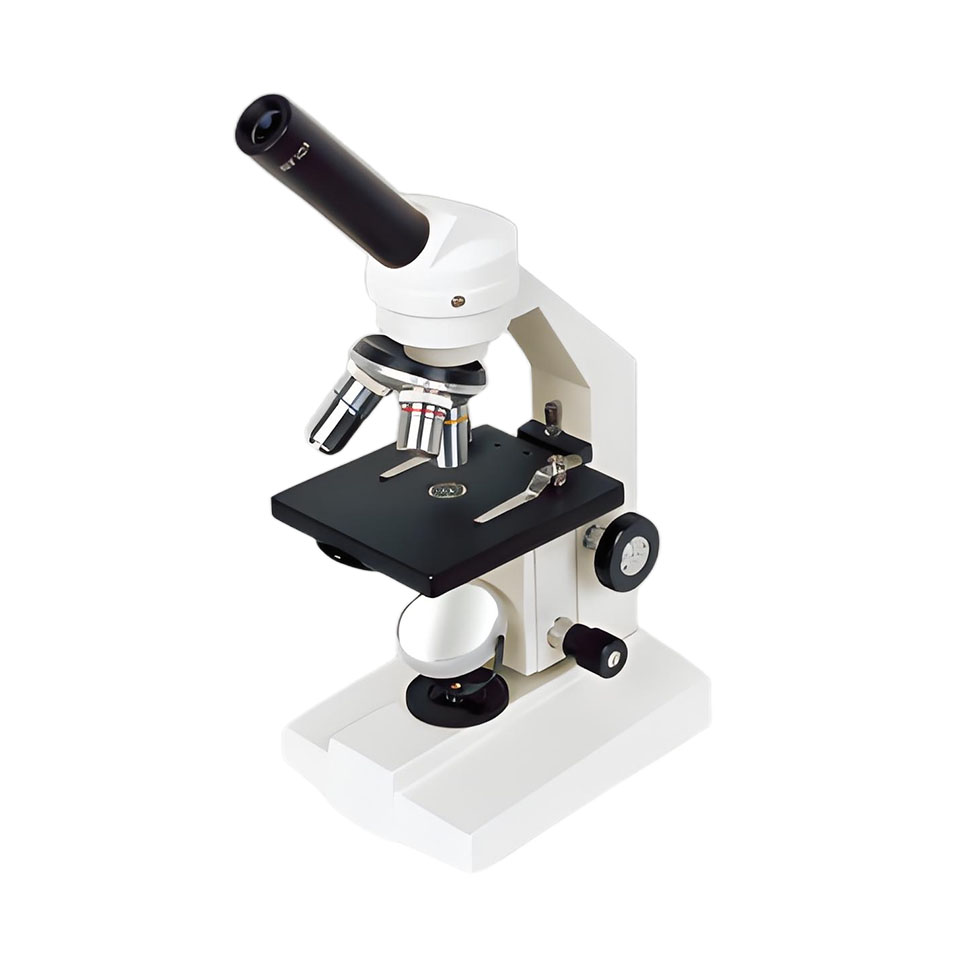

XSP-102 Series Biological Microscope

观察头
Viewing Head

单目头，45°倾斜，360°可转
Monocular Head,Inclined at 45°,360°Rotatable

●

●

●

目 镜
Eyepiece

大视场目镜WF10X/18 Wide Field Eyepiece WF10X/18

●

●

●

大视场目镜P16X/11 Wide Field Eyepiece P16X/11

O

O

O

物镜
Objective

消色差物镜4X,10X,40X(S)  Achromatic DIN 4X、10X、40X(S)

●

●

消色差物镜4X,10X,40X(S),100X(S,Oil)
Achromatic DIN 4X,10X,40X(S),100X(S,Oil)

●

转换器
Nosepiece

三孔转换器Triple Nosepiece

●

●

四孔转换器Quadruple Nosepiece

●

平台
Stage

简易平台带切片压片120X130mm
Plain Stage with Slide Clips 120X130mm

●

●

平台带移动尺110X120mm/60X30mm
Attachable Mechanical Stage 110X120mm/60X30mm

●

聚光镜
Condenser

单片聚光镜带转盘式光栏Single Lens with Disc Diaphragm

●

●

NA1.2阿贝聚光镜带可变光栏和滤色片Abbe NA1.2 with Iris Diaphragm and Filter

●

照明系统
Illumination

平凹反光镜Plan-concave Mirror

●

O

O

内置式光源，白炽灯110V或220V/15W
Built-in Illumination,Incandescent Lamp 110V/220V/15W

●

●
