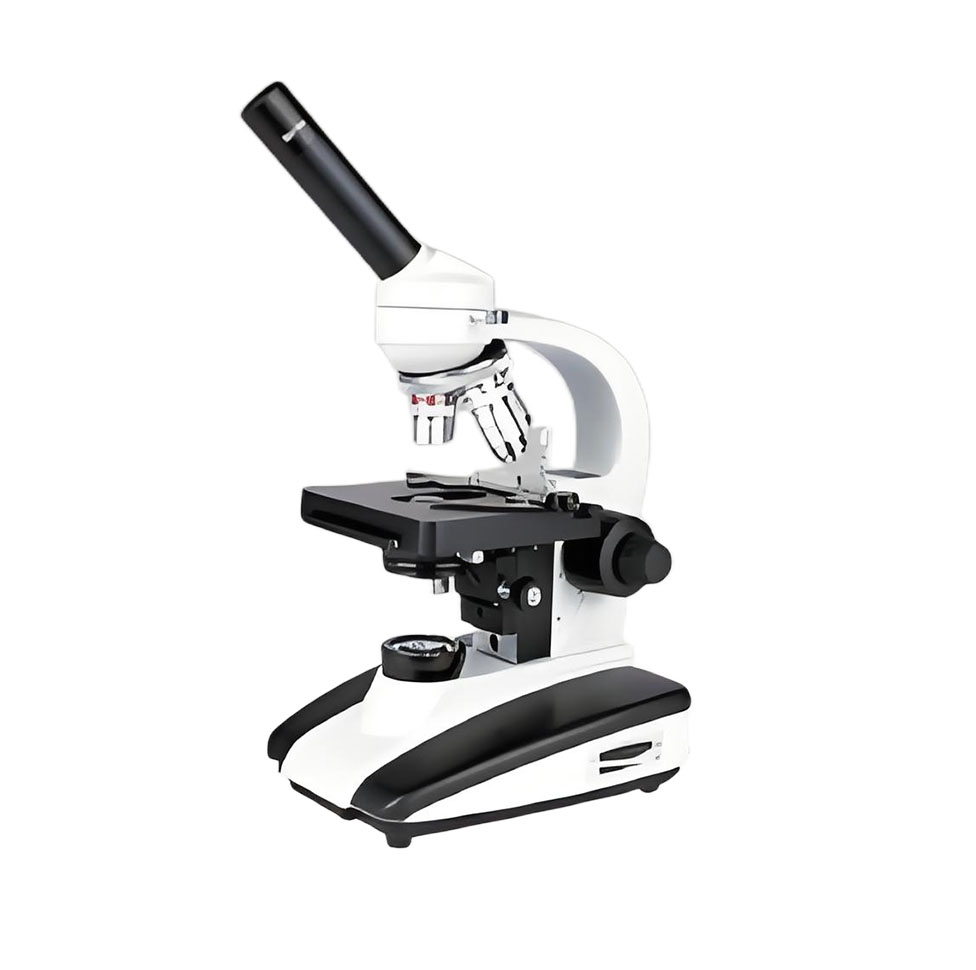

XSP-24N Biological Microscope

观察头
Viewing Head

单目观察头，倾角45°
Monocular Viewing Head,Inclined at 45°

铰链式双目观察头，倾角30°,360°可转，瞳距55-75mm
Seidentopf Binocular Viewing Head,Inclined at 30°,360°Rotatable,Interpupillary 55-75mm

目 镜
Eyepiece

WF10X/18

WF16X/11

O

O

物镜
Objective

消色差物镜4X,10X,40X,100X
Achromatic Objective 4X,10X,40X,100X

转换器Nosepiece

四孔转换器Quadruple Nosepiece

三孔转换器Triple Nosepiece

O

O

载物台
Stage

双层机械平台，移动范围60X30mm
Double Layers Mechanical Stage 60X30mm

简易平台，带切片夹Plain Stage With Slide Clips

O

聚光镜
Condenser

阿贝聚光镜NA1.25,带可变光栏
Abbe Condenser NA1.25 with Aperture Diaphragm

照明系统
Illumination

6V/20W卤素灯，亮度可调6V/20W Halogen Lamp,Brightness Adjustable

平凹反光镜Plan-concave Mirror

O

O
