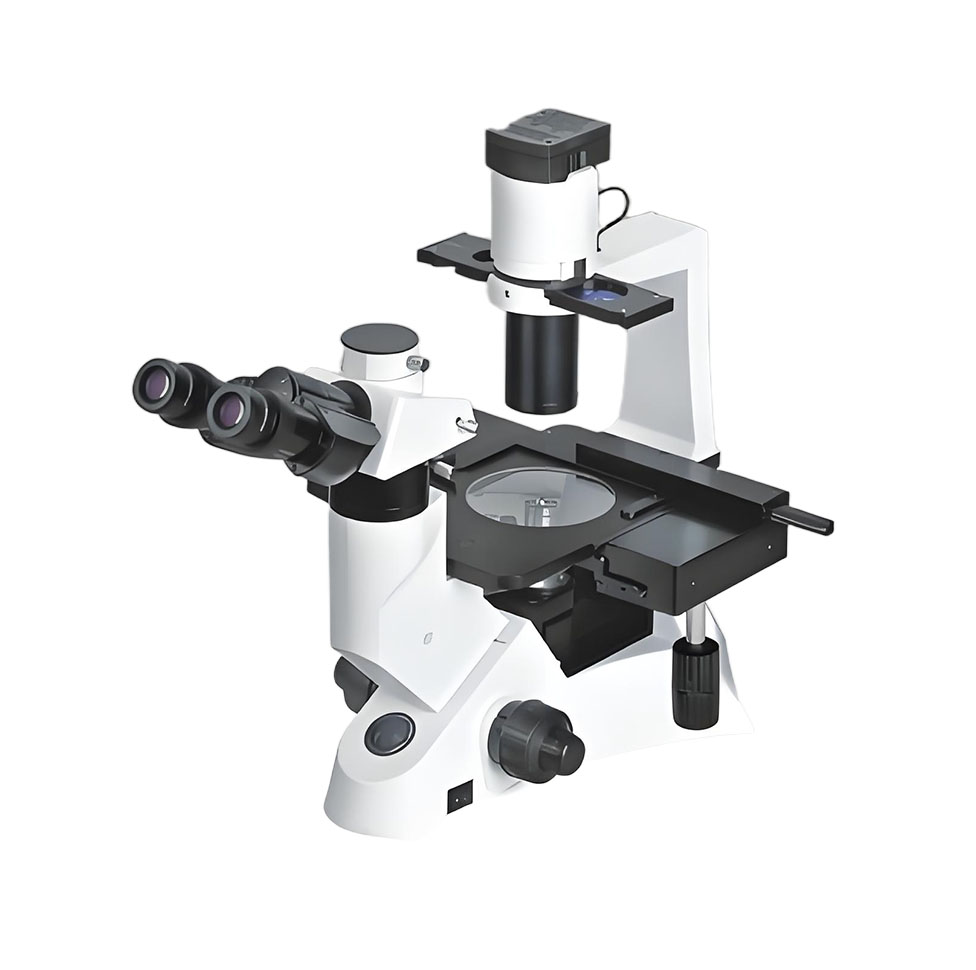

NIB-100 Inverted Biological Microscope

Inverted Biological Microscope NIB-100
● 无限远光学系统，提供了卓越的光学性能。
● 创新的镜体机构、清晰的标本观察、便捷的操作方式，专为细胞培养观察而量身设计，是常规检查的革新方案。
● Excellent optical function with infinite optical system.
● Innovative stand structure,sharp image display,convenient operation and special design for viewing incubating cell tissue.

			NIB-100
光学系统Optical System	无限远光学系统Infinite Optical System		●
观察头 Viewing Head	三目观察头，30°倾斜，瞳距调节范围48-75mm Trinocular Head Inclined at 30°,Interpupillary Distance 48-75mm		●
目镜Eyepiece	超大视野目镜EW10X122 Extra Wide Field Eyepiece EW10X/22		●
物镜 Objective	无限远平场长距物镜 LWD Infinite Plan Objective	4X10.1,WD 28mm	●
		10X/0.25,WD 10mm	O
		20X10.4,WD 5.1mm	O
		40X/0.6,WD 2.1mm	●
	无限远平场相衬物镜 Infinite Plan Phase Objective	PH10X/0.25,WD 10 mm	●
		PH20X/0.4.WD5.1mm	●
		PH40X/0.6,WD 2.1mm	O
转换器Nosepiece	五孔转换器Quintuple Nosepiece		●
聚光镜 Condenser	超长工作距离聚光镜NA0.3,LWD 72mm;卸下聚光镜后培养皿高度可达150mm ELWD Condenser NA 0.3,LWD 72mm (Without Condenser 150mm)		●
对中望远镜 Centering Telescope	对中望远镜(镜筒中30MM) Centering Telescope(φ30MM)		O
相衬滑板 Phase Annulus	10X-20X、40X预调心型相衬滑板10X-20X、40X Phase Annulus Plate(Fixed)		●
	10X-20X、40X可调心型相衬滑板10X-20X、40X Phase Annulus Plate(Adjustable)		O
载物台 Stage	平面载物台160X250mm Plain Stage 160X250mm		●
	载物台插入圆板Glass Insert		●
	机械移动尺，右手低位同轴X、Y方向旋钮，移动范围120X78mm Attachable Mechanical Stage,X-Y Coaxial Control,Moving Rang120X78mm		O
	接长托板70X180mm Auxiliary Stage 70X180mm		●
	Terasaki托架Terasaki Holder		O
	φ35mm培养皿托架Petri Dish Holder φ35mm
	φ54mm培养皿/载玻片托架Slide Glass Holder φ54mm		O
	φ90mm培养皿托架Petri Dish Holder φ90mm		O
焦距调节 Focusing	同轴粗微调焦机构，微调格值0.002mm,粗动行程每圈37.7mm,微动行程每圈0.2mm,调焦范围上8mm, 下 3 m m Coaxial Coarse and Fine Adjustment,Fine Division 0.002mm,Coarse Stroke 37.7mm per Rotation, Fine Stroke 0.2mm per Rotation,Moving Range up 8mm,down 3mm		●
照明系统 Illumination	6V/30W卤素灯Halogen Lamp 6V/30W		●
	3W LED		O
滤色镜Filter	蓝色、绿色、磨砂玻璃片，直径45mm Blue、Green and Ground Glass,Diameter 45mm		●
附件 Accessories	Fl-100倒置荧光装置Inverted Fluorescent Attachment Fl-100		O
	摄影附件Photo Attachment		O
	摄像标准C接口Video Adapter with C Mount		O

注：●为标准配置，○为选购配件 Note: ● Standard Outfit, O Optional
