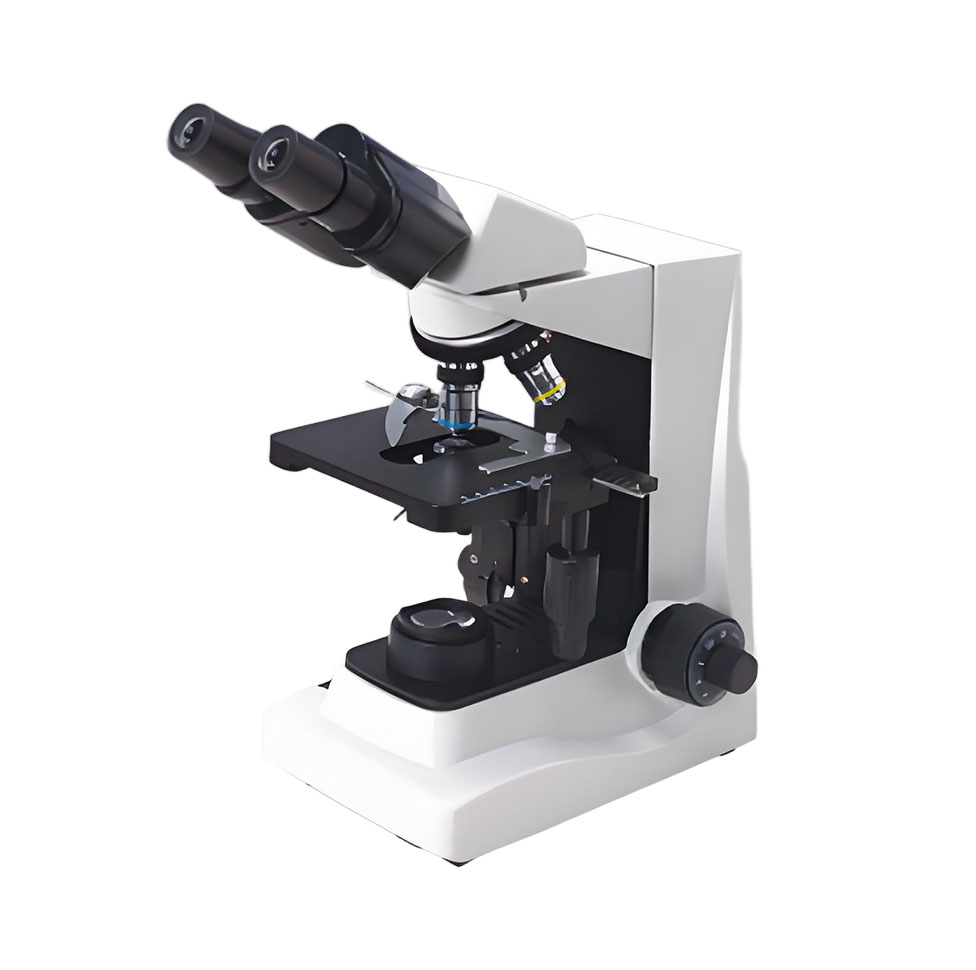

N-400M Biological Microscope

观察头
Viewing Head

铰链式双目头，30°倾斜，360°可转，瞳距55-75mm
Seidentopf Binocular Viewing Head,Inclined at 30°,360°Rotatable,Interpupillary 55-75mm

●

单目头，30°倾斜，360°可转Monocular Head,Inclined at 30°,360° Rotatable

O

铰链式三目头，30°倾斜，360°可转，瞳距55-75mm
Seidentopf Trinocular Viewing Head,Inclined at 30°,360°Rotatable,Interpupillary 55-75mm

O

目 镜
Eyepiece

大视场目镜WF10X/18 Wide Field Eyepiece WF10X/18

●

大视场目镜P16X/11 Wide Field Eyepiece P16X/11

●

物镜
Objective

消色差物镜4X、10X、40X、100X Achromatic Objective 4X,10X,40X,100X

●

消色差物镜20X、60X Achromatic Objective 20X,60X

O

平场消色差物镜4X、10X、20X、40X、60X、100X Plan Achromatic Objective 4X,10X,20X,40X,60X,100X

O

转换器
Nosepiece

内向式四孔转换器Backward Quadruple Nosepiece

●

内向式五孔转换器Backward Quintuple Nosepiece

O

载物台Stage

双层活动平台140X140mm,移动范围75X50mm Double Layers Mechanical Stage 140X140mm/75X50mm

●

聚光镜
Condenser

阿贝聚光镜NA 1.25,带可变光栏和滤色片
NA 1.25 Abbe Condenser with Iris Diaphragm and Filter,Rack &Pinion Adjustment

●

调焦系统
Focusing System

同轴粗微调焦机构，微调格值0.002mm,粗动行程每圈37.7mm,微动行程每圈0.2mm,调焦范围24mm
Coaxial Coarse and Fine Adjustment,Fine Division 0.002mm,Coarse Stroke 37.7mm per Rotation,Fine
Stroke 0.2mm per Rotation,Moving Range 24mm

●

照明系统
Illumination

S-LED照明，亮度连续可调S-LED Illumination,Brightness Adjustable

●

6V/20W卤素灯，亮度连续可调Halogen Lamp 6V/20W,Brightness Adjustable

O

柯勒照明装置Kohler Illumination

O

摄影附件
Photo Attachment

O

摄像附件
Video Attachment

1X(C接口)1XC Mount

O

0.5X(C接口)0.5X C Mount

O

滤色片
Filter

蓝色滤色片Blue Filter

O

绿色滤色片Green Filter

●

偏光装置
Polarization Set

简易偏光装置
Simple Polarization Set

O

相衬装置
Phase Contrast Kit

简易相衬装置Simple Phase Contrast Kit

O

推拉式相衬装置Sliding Phase Contrast Kit

O

转盘式相衬装置Turret Phase Contrast Kit

O

暗场装置
Dark Field Attachment

干式暗场聚光镜NA0.7-0.9 Dark Field Condenser (Dry)NA 0.7-0.9

O

油式暗场聚光镜NA1.25-1.36 Dark Field Condenser (Oil)NA 1.25-1.36

O

荧光装置
Fluorescent Attachment

YX-2落射荧光装置YX-2 Epi-fluorescent Attachment

O

FL-LED落射荧光装置FL-LED Epi-fluorescent Attachment

O
