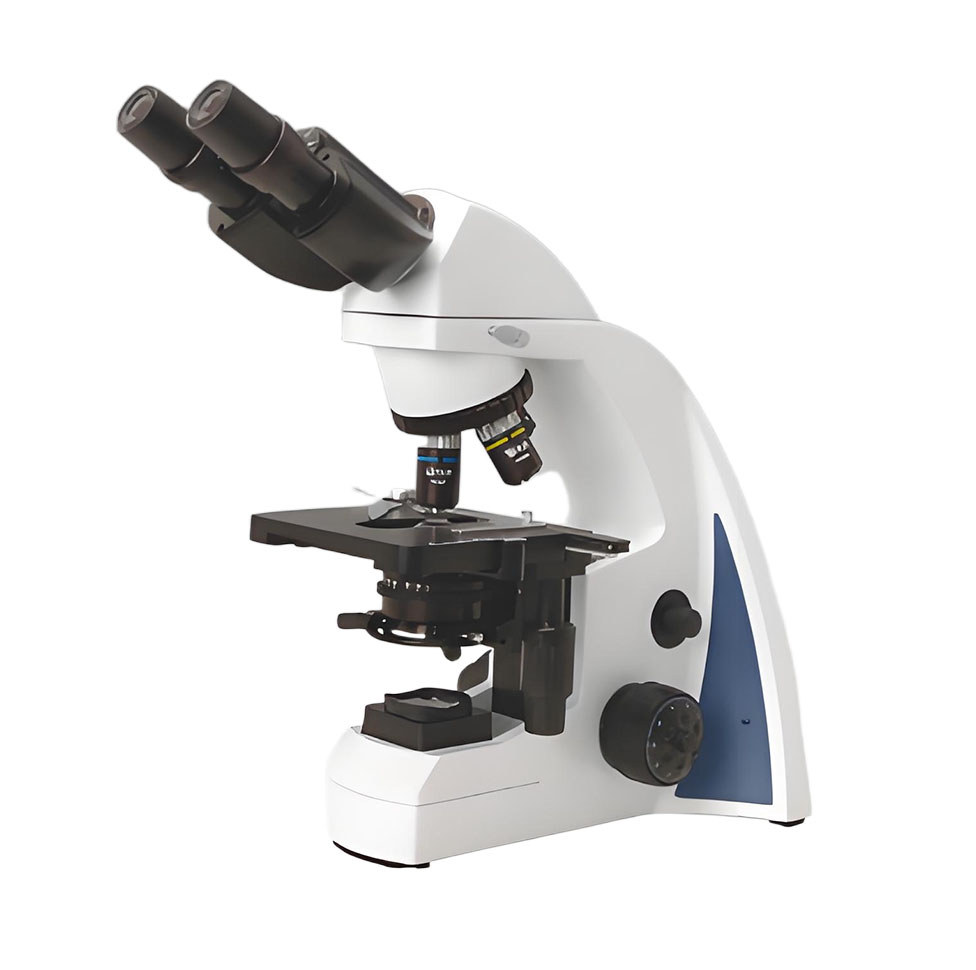

N-300M Biological Microscope

Biological Microscope N-300M
● 无限远光学系统，提供了卓越的光学性能
● 整体流线型结构设计，使操作者倍感舒适和亲切
● 插拨式可调中聚光镜，使照明更加集中、有效、便于相衬、暗场等附件的更换。
● Excellent image quality with infinitive optical system
● Comfortable operating with ergonomic structure
● Better illumination with sliding-in centerable condenser, Convenient replacement with phase contrast and dark field condenser

		N-300M
光学系统 Optical System	无限远光学系统 Infinite Optical System	●
观察头 Viewing Head	铰链式双目头，30°倾斜，瞳距48-75mm Seidentopf Binocular Viewing Head,30°Inclined,Interpupillary 48-75mm	●
观察头 Viewing Head	铰链式三目头，30°倾斜，瞳距48-75mm Seidentopf Trinocular Viewing Head,30°Inclined,Interpupillary 48-75mm	O
目镜 Eyepiece	大视场目镜WF10X/18 Wide Field Eyepiece WF 10X/18	●
目镜 Eyepiece	可调视度大视场平场目镜EW10X/20 Extra Wide Field Eyepiece EW10X/20 with Diopter Adjustment	O
物镜 Objective	无限远半平场消色差物镜4X,10X,40X,100X Infinitive Semi-plan Achromatic Objectives 4X,10X,40X,100X	●
物镜 Objective	无限远平场消色差物镜4X,10X,40X,100X Infinitive Plan Achromatic Objectives 4X,10X,40X,100X	O
转换器Nosepiece	四孔转换器Quadruple Nosepiece	●
载物台 Stage	双层活动平台，载物台面积140mmX140mm移动范围75mmX50mm Double Layers Mechanical Stage 140mmX140mm/75mmX50mm	●
聚光镜Condenser	插入式聚光镜NA1.25 Sliding-in Centerable condenser NA1.25	●
调焦系统 Focusing System	同轴粗微调焦机构，微调格值0.002mm,粗动行程每圈37.7mm,微动行程每圈0.2mm,调焦范围20mm Coaxial Coarse and Fine Adjustment,Fine Division 0.002mm,Coarse Stroke 37.7mm per Rotation, Fine Stroke 0.2mm per Rotation,Moving Range 20mm	●
照明系统 Illumination	S-LED照明，亮度连续可调S-LED Illumination,Brightness Adjustable	●
照明系统 Illumination	6V/20W卤素灯，亮度可调6V/20W Halogen Lamp,Brightness Adjustable	O
相衬附件Phase Contrast Kit		O
荧光装置 Fluorescent Attachment	YX-2落射荧光装置YX-2 Epi-fluorescent Attachment	O
荧光装置 Fluorescent Attachment	FL-LED落射荧光装置FL-LED Epi-fluorescent Attachment	O
暗场装置 Dark Field Attachment		O
温控系统 Temperature Control System	5W LED照明电源，温度范围：室温~50℃ 5W LED Illumination,Temperature controlling range:Room temperature to 50℃	O

注： ●为标准配置，○为选购配件 Note: ● Standard Outfit, ○ Optional
