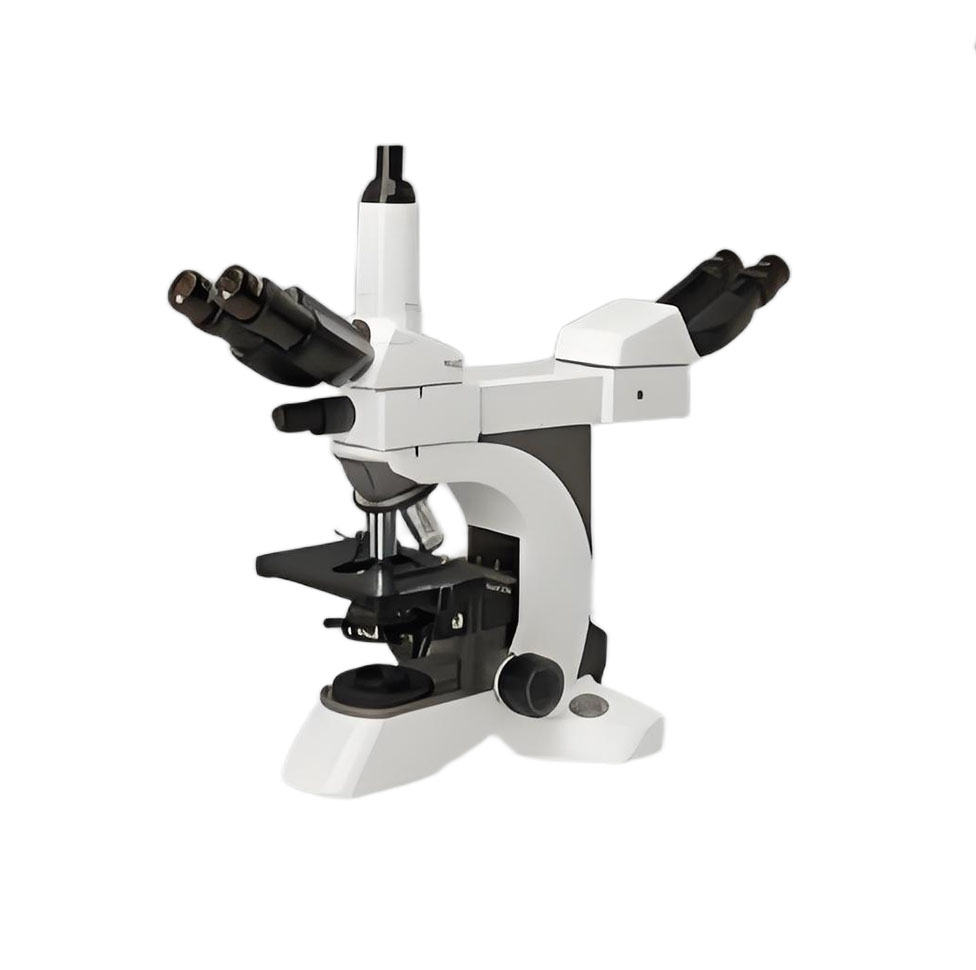

Muti-viewing Microscope

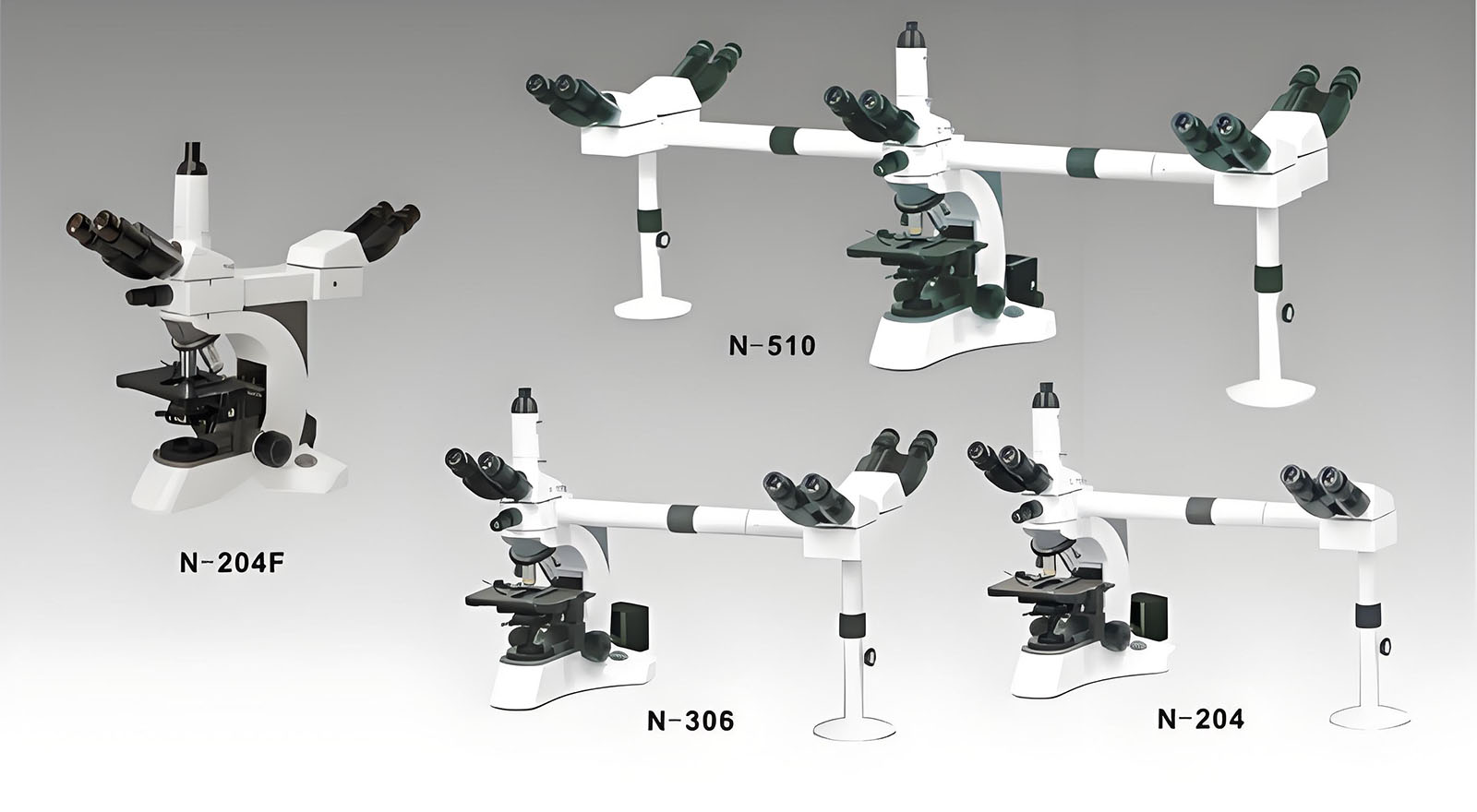

N-510

N-306

N-204

N-204F

光学系统
Optical System


无限远光学系统
Infinite Optical System

观察头
Viewing Head

铰链式三目头,30°倾斜,瞳距48-75mm
Seidentopf Trinocular Head Inclined at 30°,360°Rotatable,Interpupilary Distance 48-75mm

1PC

1PC

1PC

1PC

铰链式双目头,30°倾斜,瞳距48-75mm
Seidentopf Binocular Head,Inclined at 30°,360°Rotatable,Interpupilary Distance 48-75mm

4PCS

2PCS

1PC

1PC

目镜Eyepiece

超大视场目镜EW10X20 Extra Wide Field Eyepiece EW10X/20

10PCS

6PCS

4PCS

4PCS

转换器Nosepiece

内向式五孔转换器Backward Quintuple Nosepiece

物镜
Objective

无限远平场消色差物镜4X10X40X100X
Infinite Plan Achromatic Objective 4X10X40X100X

聚光镜Condenser

摆出式聚光镜NA0.9/0.25 Swing Condenser N.A.0.9/0.25

焦距调节

Focusing System

同轴粗微调焦机构,微调格值0.001mm,粗动行程每圈37.7mm,微动行程每圈0.1mm,调焦范围24mm
Coaxial Coarse and Fine Adjustment,Fine Division 0.001mm,Coarse Stroke 37.7mm per
Rotation,Fine Stroke 0.1mm per Rotation,Moving Range 24mm

载物台
Stage

双层活动平台,尺寸185X142mm,移动范围75X55mm
Double Layers Mechanical Stage 185X142mm,Moving Range 75X55mm

柯拉照明
Kohler Illumination

24V/100W卤素灯External Illumination,Halogen Lamp 24V/100W

5W LED照明5W LED Illumination

O

O

O

O

示教指针

Pointer

绿色LED示教指针,亮度可调Green LED Pointer ,Brightness Adjustable

双色LED示教指针,亮度可调Two Color LED Pointer ,Brightness Adjustable

O

O

O

O

摄影附件
Photo Attachment

O

O

O

O

摄像接筒

Video Adapter

C型接口1X C Mount 1X

O

O

O

O

C型接口0.5X C Mount 0.5X

O

O

O

O

注:●为标准配置,○为选购配件 Note:  Standard Outfit,  Optional
