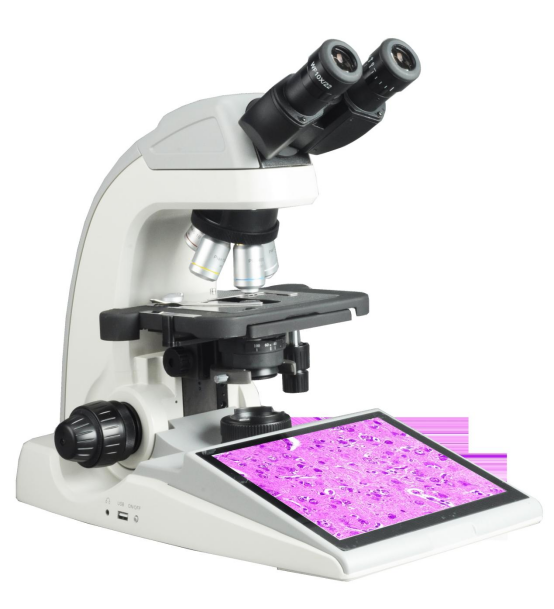

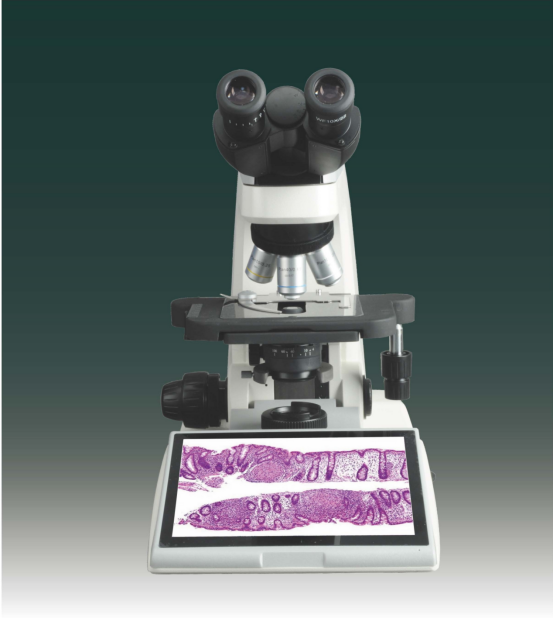

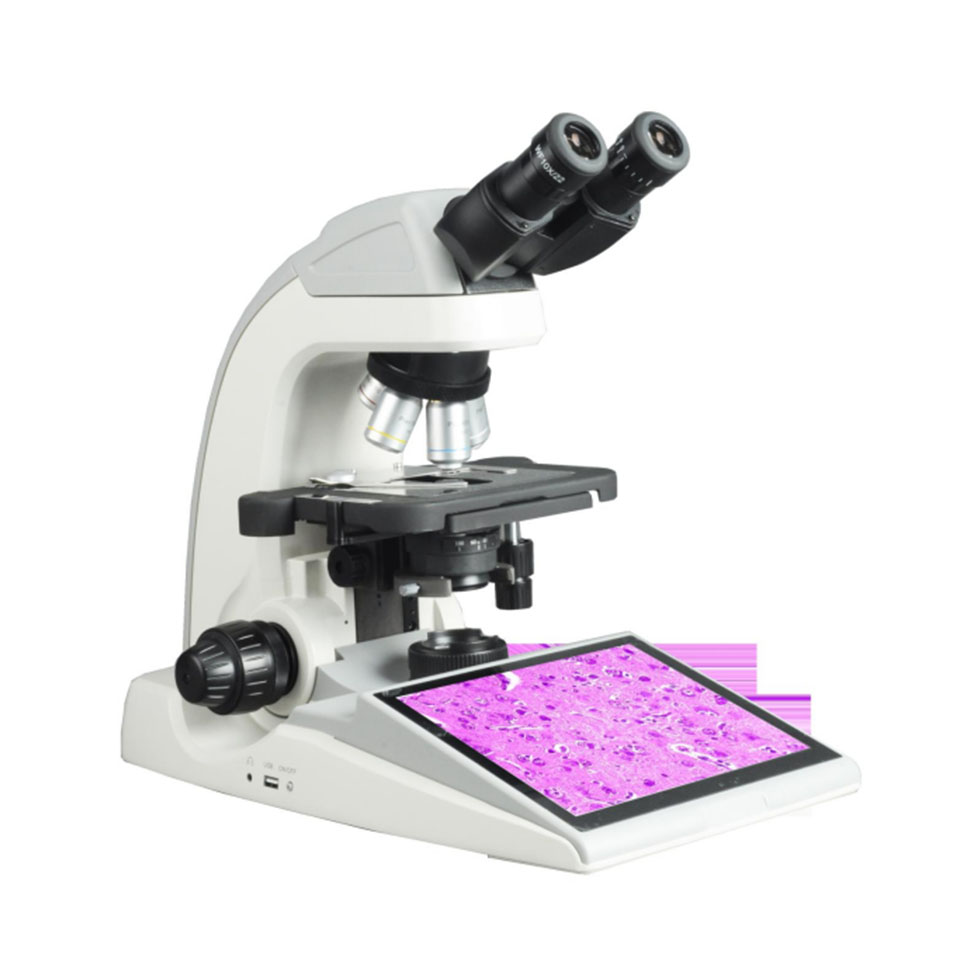

IDM2300 Digital Biological Microscope

Teaching·Clinic·Laboratory Easy.Space-saving·Real integration

Digital Biological Microscope

*Specifications*
Model	iDM2300
Optical System	Infinite optical system
Viewing Head	Seidentopf built-in digital binocular head inclined at 30°, Interpupilary 48-75mm,USB 2.0 port
Eyepiece	WF10X22,diopter adjustable
Objective	Plan objective 4X,10X,40X,100X
Objective	Optional Achromatic objective 20X,60X
Nosepiece	Backward quadruple nosepiece,Accurate and reliable location
Mechanical moving stage	Cross Travel 78(X)mm x54(Y)mm,Rectangular 216×150mm,clamp double slices
Coaxial focusing system	Coarse fine adjustment:22mm.fine division 0.002mm
Condenser	Abbe condenser with iris diaphragm &with multiple indicator &blue fitter
Illumination	5W LED illumination,brightness adjustable
Image sensor	16 million pixel science CMOS,Pixel 1.335 NM
Display	9.7 inches IPS retina screen display,resolution 2048*1536
Operating System	Win 10 system

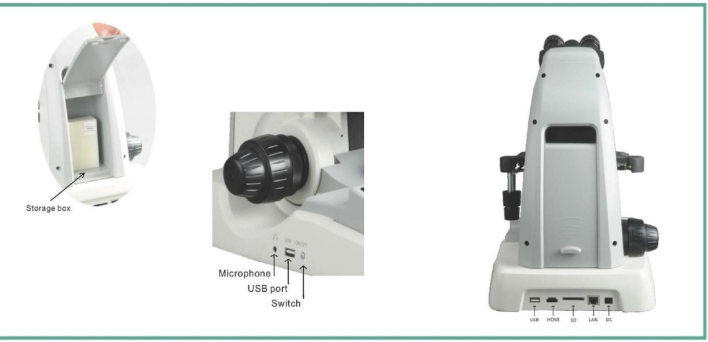

Communication,Storage	USB external interface and SD card interface,built-in WIFI wireless module,Gigabit LAN interface,HDMI synchronized to the projector or related high-definition display equipment

Observation tube	Mechanical stage
Seidentopf binocular viewing head,360° rotatable, Adjustable height of the starting point 42mm,	Size:216mmX150mm,
	Cross travel:78mmX54mm,
Built in scientific grade CMOS image acquisition system, Seamless connection with display system.	Clamp double slices
Focusing system	Condenser
Coaxial coarse and fine adjustment,focusing limiting device and a torque adjusting mechanism.	Abbe Condenser NA=1.25,with iris diaphragm, with multiple indicator &blue fitter φ33mm.
Coarse stroke:22mm.fine division 0.002mm, The low position coaxial hand wheel.	The vertical movement range is 25mm,the auxiliary lens can guarantee that the entire field of vision is even and bright at low times.
Illuminator
5W LED illumination lighting,
Brightness adjustment mode:Potentiometer adjustment.

*More functionality*
● Dark field microscopy

Bright field/dark field condenser,used for the low magnification(below 40X) dark field observation needs)	Professional field condenser (dry), black background,more bright:	Professional field condenser (oil),black background,more bright,more suited to the high NA value of the dark field observation

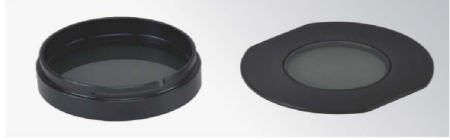

● Polarizing microscopy
	Polarizer is placed in the barrel,between the mirror body,partial mirror"card "on the condenser, 360 degree rotation:ordinary beam can be changed into a polarized light,suitable for anisotropic crystal material microstructure analysis

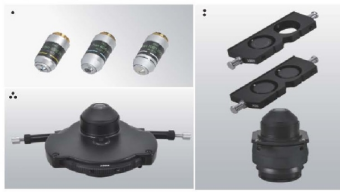

● Phase contrast microscopy

     By using phase contrast device (objective,condenser,centering telescope) for matching microscopic observation, especially for in low contrast specimens analyzed

    1 CF phase contrast objective
       Centering telescope(10X40X100X)
    2  Phase plate condenser
       Bright field microscopic observation
       Phase contrast microscopy

    3 Rotary table type mufti-functional condenser
       Bright field microscopic observation
       Dark field microscopy
       Phase contrast microscopy

System Dimension Drawing
